รายละเอียด
| Size | Warranty | Specification |
| 240 | 1 Year | Size：Pump：72mm*85.3mm*57.5mm；radiator：277mm*120mm*27mm；Fan：243mm*123mm*28mm |
| Fan Air Flow：21.46-62.40CFM(each) | ||
| Pump Speed：2400rpm（±10%) | ||
| Color : Black , White |

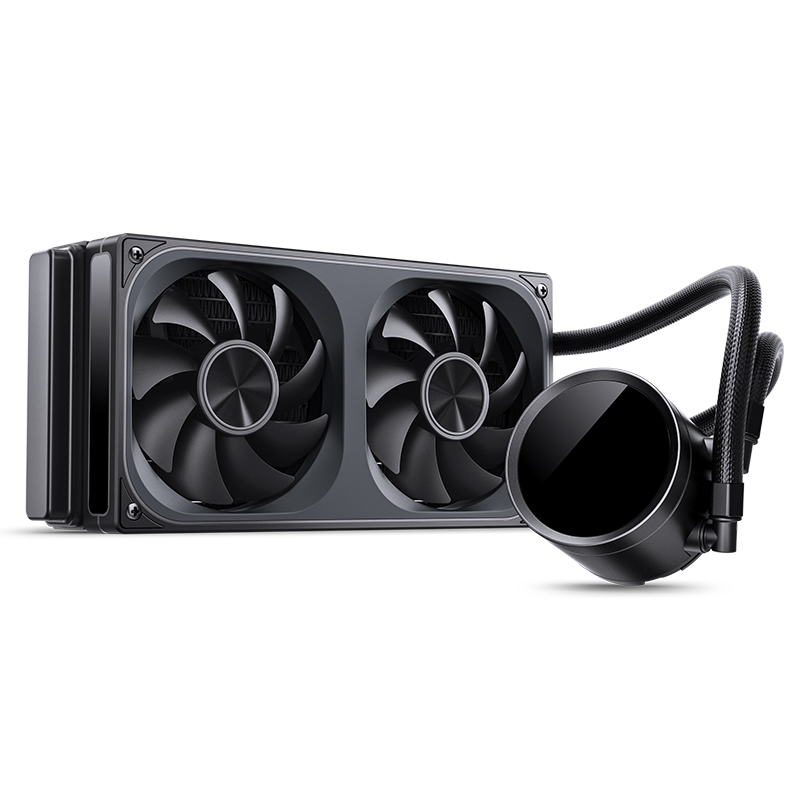

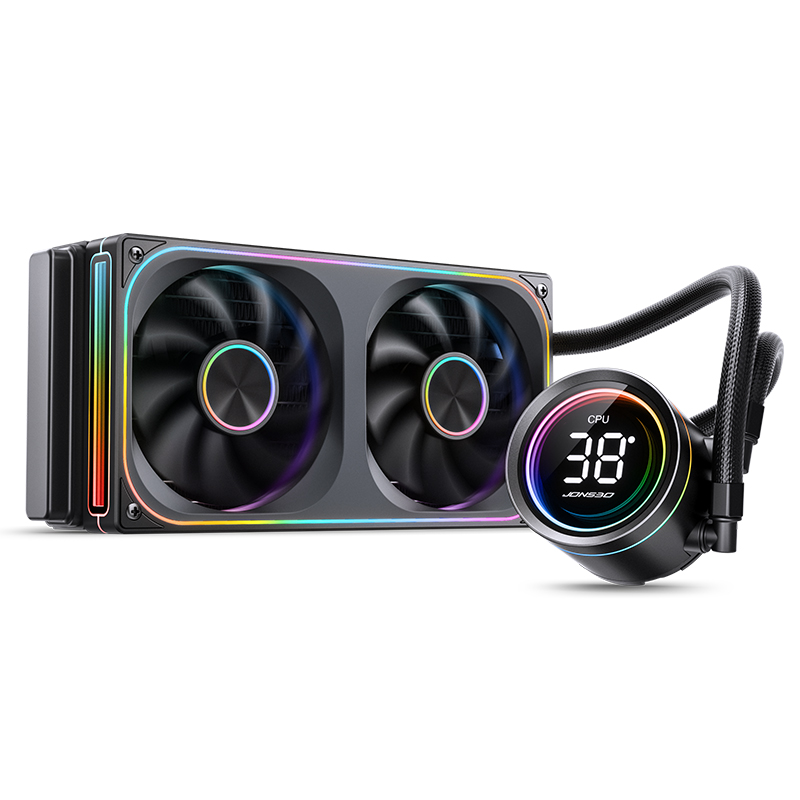

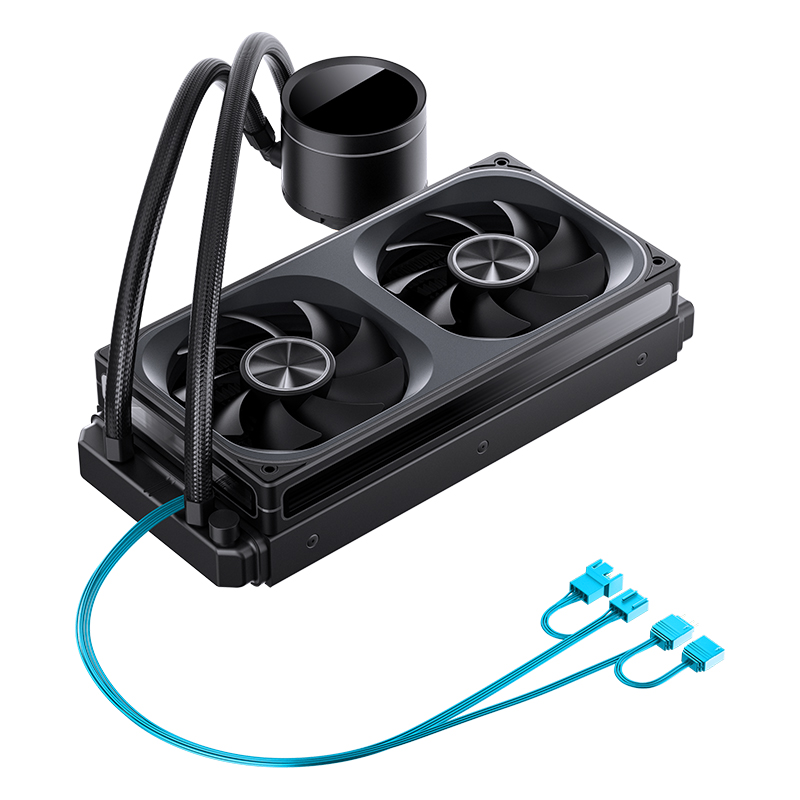

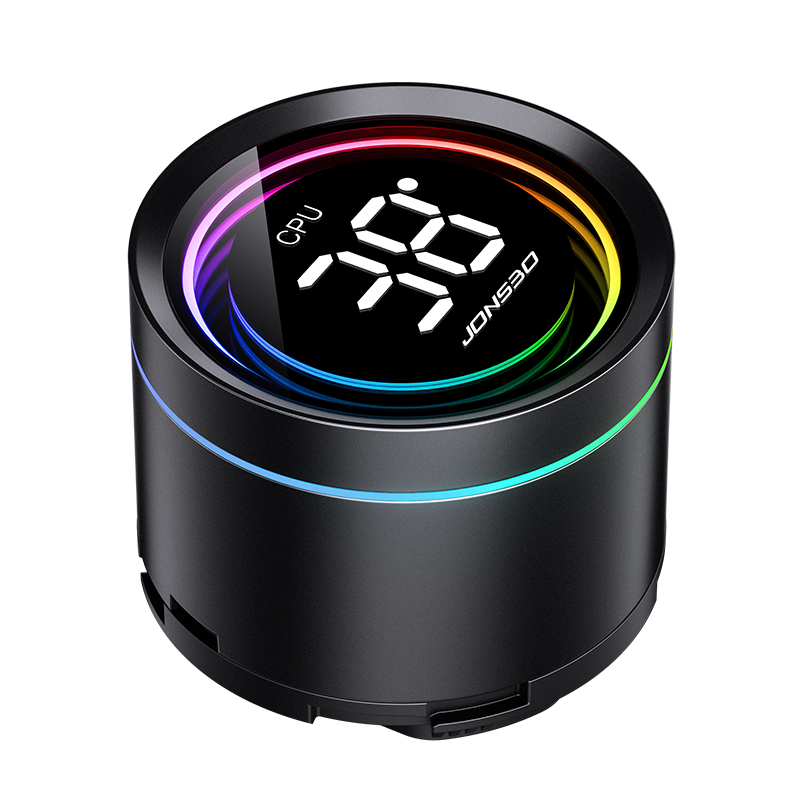

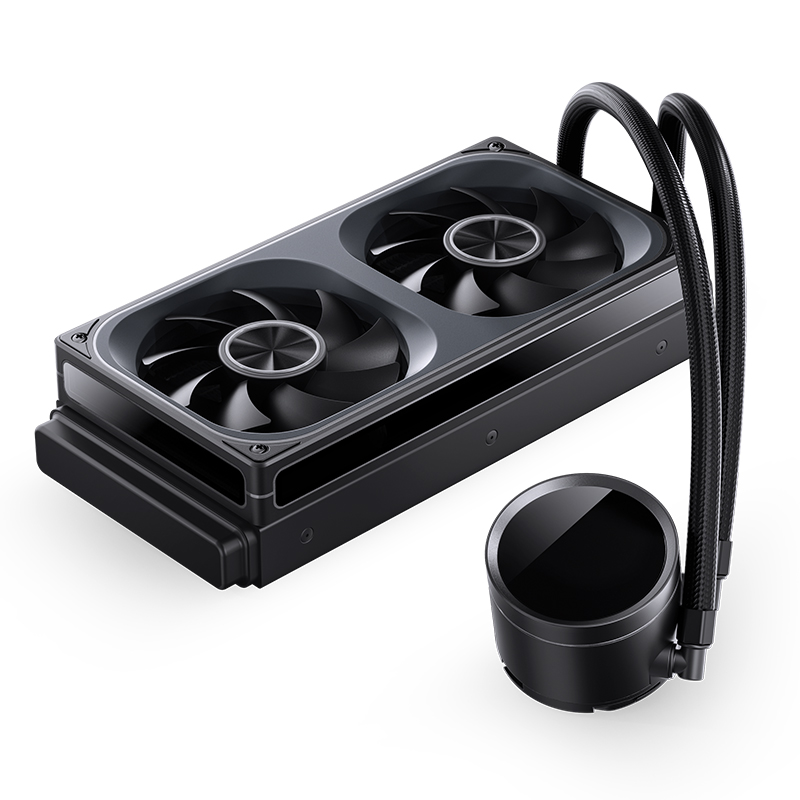

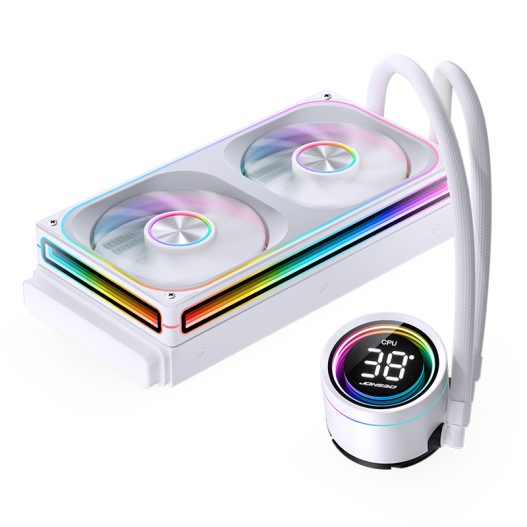

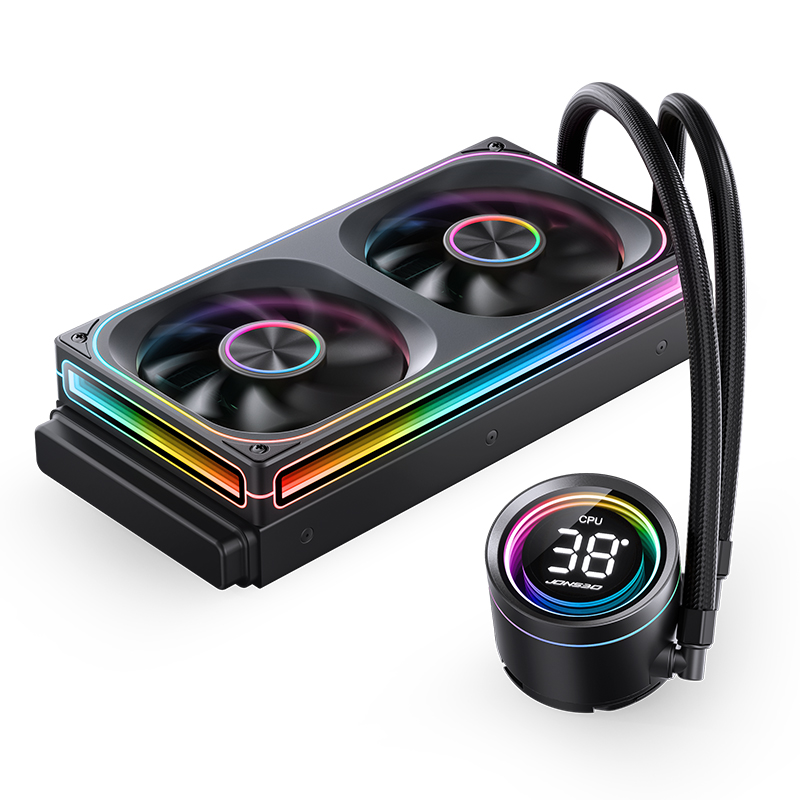

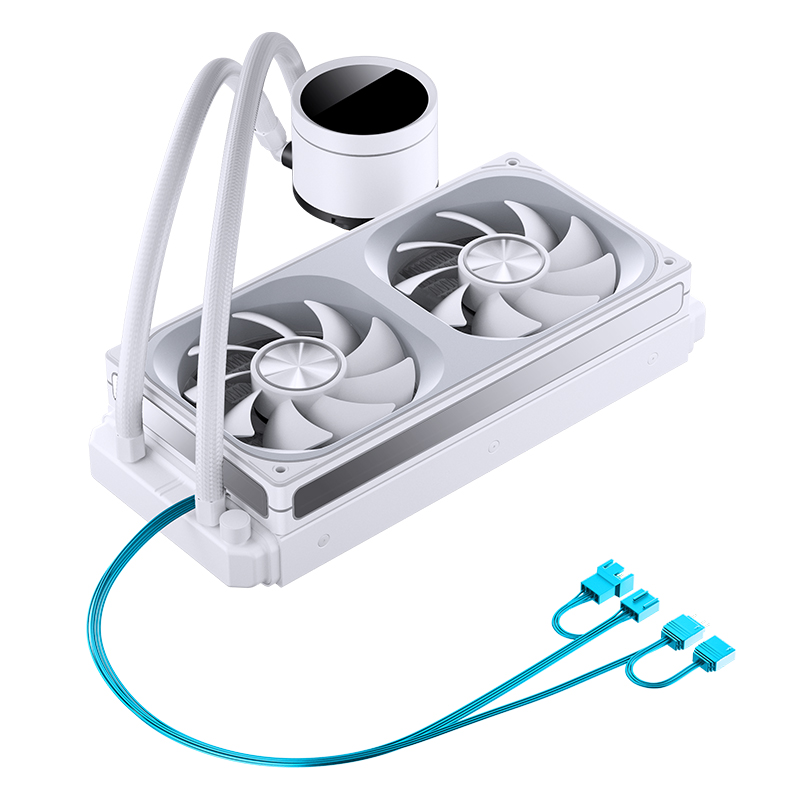

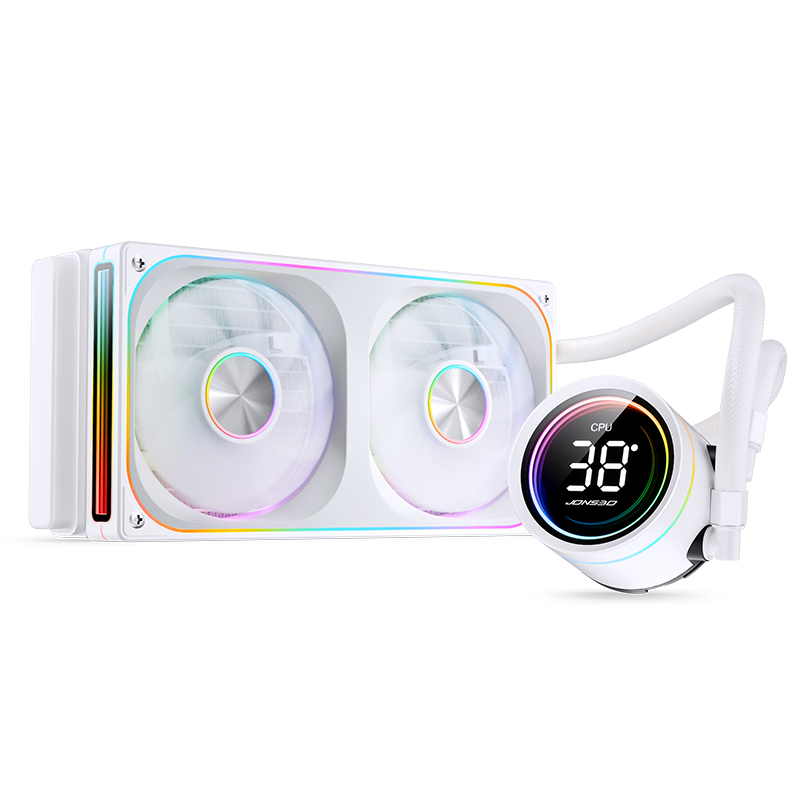

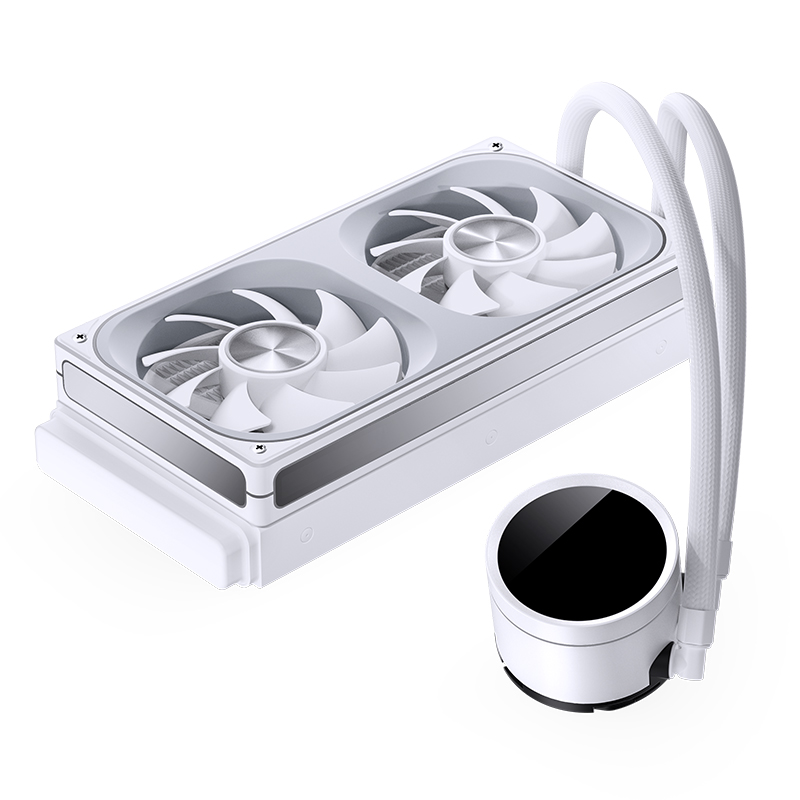

TH-240
| Model | TH-240 |
| Color | Balck , White |
| Product type | Integrated water cooling |
| Size | Pump：72mm*85.3mm*57.5mm；radiator：277mm*120mm*27mm；Fan：243mm*123mm*28mm |
| Fan Air Flow | 21.46-62.40CFM(each) |
| Fan Bearing | Hydraulic |
| Fan Speed | 700-2400 rpm(±10%) |
| Fan Connector | 4PIN PWM |
| Fan Noise Level | 21.3-37.3dB(A)(max) |
| Pump Power Consumption | 5.4W |
| Pump Noise Level | ＜30 dB(A) |
| Pump Working Voltage | 12V DC |
| Pump Speed | 2400rpm（±10%） |
| Platform support | Intel LGA 1200/115X/17XX/1851; AMD AM4/AM5 |
