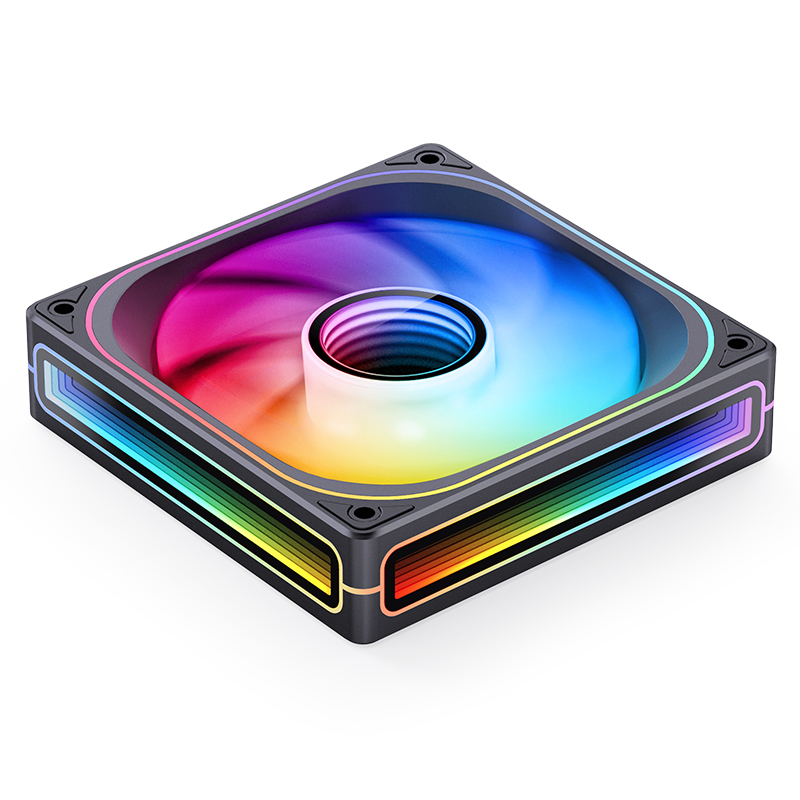

| NAME | ZB-120 Reverse |
| Color | Black , White |
| Dimension | 120mm（L）*120mm（W）*28mm（H） |
| Speed | 700-2400rpm(±10%） |
| Air Flow | 20.95-65.26 CFM |
| Noise Level | 20.3-36.6 dB(A)(MAX) |
| Voltage | FAN 12V LED 5V |
| Current | FAN 0.20A(MAX) LED 0.71A(MAX) |
| Input Power | FAN 2.40W(MAX) LED 3.55W(MAX) |
| Static pressure | 0.45-3.20 mmH2O |
| MTTF |
≥ 20000h Room Temp:25 ℃ |
| Connector | PWM 4PIN ARGB 3PIN |
| Color | Warranty | Specification |
| Black , White | 1-Y | Dimension：120mm（L）*120mm（W）*28mm（H） |
| Speed：700-2400rpm(±10%） | ||
| Air Flow：20.95-65.26 CFM | ||
| Noise Level：20.3-36.6 dB(A)(MAX) | ||
| Voltage：FAN DC12V LED 5V | ||
|
MTTF：≥ 20000h Room Temp:25 ℃ |
||
| Connector：PWM 4PIN ARGB 3PIN |
| Model：DY-2 GPU 12+4Pin(12VHPWR) |
| Dimension：Whole unit 285mm Cable 240mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 0.81A |
| Power Consumption：Cable 2.1KW Light 4.05W |
| Connector：12+4Pin/5V ARGB |
| Model：DY-2 GPU 12+4Pin(12VHPWR) |
| Dimension：Whole unit 285mm Cable 240mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 0.81A |
| Power Consumption：Cable 2.1KW Light 4.05W |
| Connector：12+4Pin/5V ARGB |
The outer shell of UMX3 is fully made from aluminum magnesium alloy with Jonsbo team's accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuse the strong structure and good appearance of the product. Hidden cooling channels on the bottom and circular tool-less side plates show you the charm of endlessly innovative industrial design.
UMX3 is the third flagship of UMX series, it is designed to adapt MATX motherboard. The key breakthrough is optimized support for high-end hardware, with its good stack-based concept in such a small space UMX3 supports high-end dual slots display card with length not longer than 320mm, and surprisingly radiator with height not higher than 163mm, it actually supports most of the top air cooled radiator Besides, the full transparent acrylic side plate version UMX3 provides you a wide angle to see the hardware.
The outer shell of UMX3 is fully made from aluminum magnesium alloy with Jonsbo team's accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuse the strong structure and good appearance of the product. Hidden cooling channels on the bottom and circular tool-less side plates show you the charm of endlessly innovative industrial design.
UMX3 is the third flagship of UMX series, it is designed to adapt MATX motherboard. The key breakthrough is optimized support for high-end hardware, with its good stack-based concept in such a small space UMX3 supports high-end dual slots display card with length not longer than 320mm, and surprisingly radiator with height not higher than 163mm, it actually supports most of the top air cooled radiator Besides, the full transparent acrylic side plate version UMX3 provides you a wide angle to see the hardware.
| Model： MOD 3 |
| Dimension: 232mm(W)×647mm(D)×620mm(H) |
| Material: Structure Material:2.5+2.0 Aluminum; Side Plate:4.0mm Tempered Glass Plate |
| Motherboard: EATX; ATX; MATX; ITX |
| CPU Cooler: Not higher than 170mm |
| Display Card: Not longer than 400mm |
| Drive Bay: 2.5SSD×2+3.5HDD×1 Or 2.5SSD*3 |
| Front I/O Port: USB 3.0×2/AUDIO×1/MIC×1 |
| Cooling Systerm: Top: 3×120mm Fan (optional) Front:3×120mm Fan (optional) |
| Power Supply: Standard ATX PS2(Not longer than 195mm) |
| Expansion Slot: 7 |
| Liquid Cooler： 240/360 |
| Weight: Net 8kg |
| Model： MOD 3 |
| Dimension: 232mm(W)×647mm(D)×620mm(H) |
| Material: Structure Material:2.5+2.0 Aluminum; Side Plate:4.0mm Tempered Glass Plate |
| Motherboard: EATX; ATX; MATX; ITX |
| CPU Cooler: Not higher than 170mm |
| Display Card: Not longer than 400mm |
| Drive Bay: 2.5SSD×2+3.5HDD×1 Or 2.5SSD*3 |
| Front I/O Port: USB 3.0×2/AUDIO×1/MIC×1 |
| Cooling Systerm: Top: 3×120mm Fan (optional) Front:3×120mm Fan (optional) |
| Power Supply: Standard ATX PS2(Not longer than 195mm) |
| Expansion Slot: 7 |
| Liquid Cooler： 240/360 |
| Weight: Net 8kg |
| Specification |
| Model：DY-2 M/B 24pin |
| Dimension：Whole unit 285mm Cable 240mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 0.92A |
| Power Consumption：Cable 2.1KW Light 4.6W |
| Connector：24Pin/5V ARGB |
| Specification |
| Model：DY-2 M/B 24pin |
| Dimension：Whole unit 285mm Cable 240mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 0.92A |
| Power Consumption：Cable 2.1KW Light 4.6W |
| Connector：24Pin/5V ARGB |
| Model | Z20 |
| Colors | Orange/White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | Z20 |
| Colors | Orange/White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
