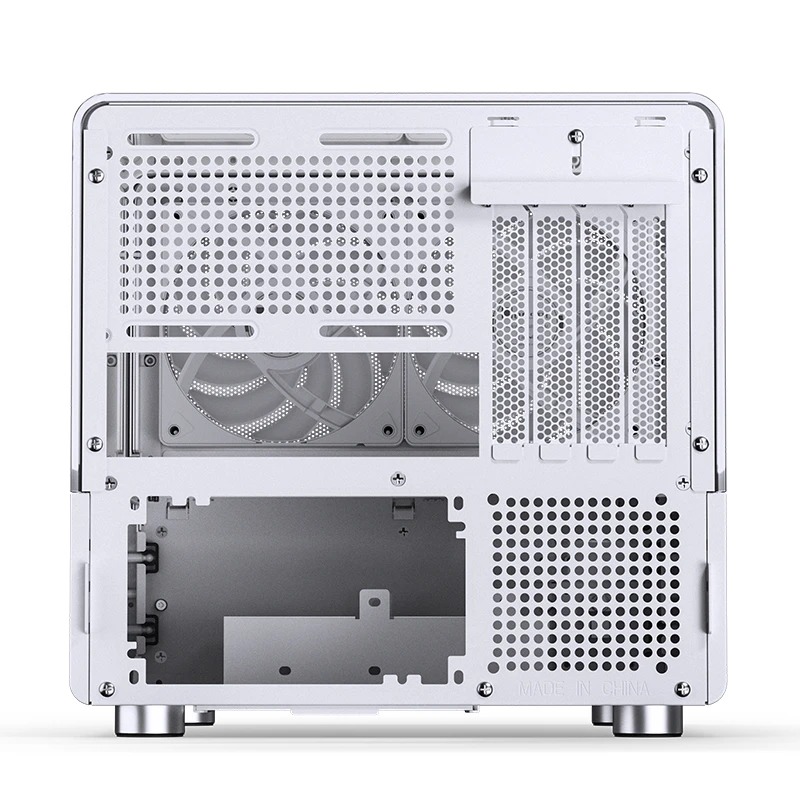

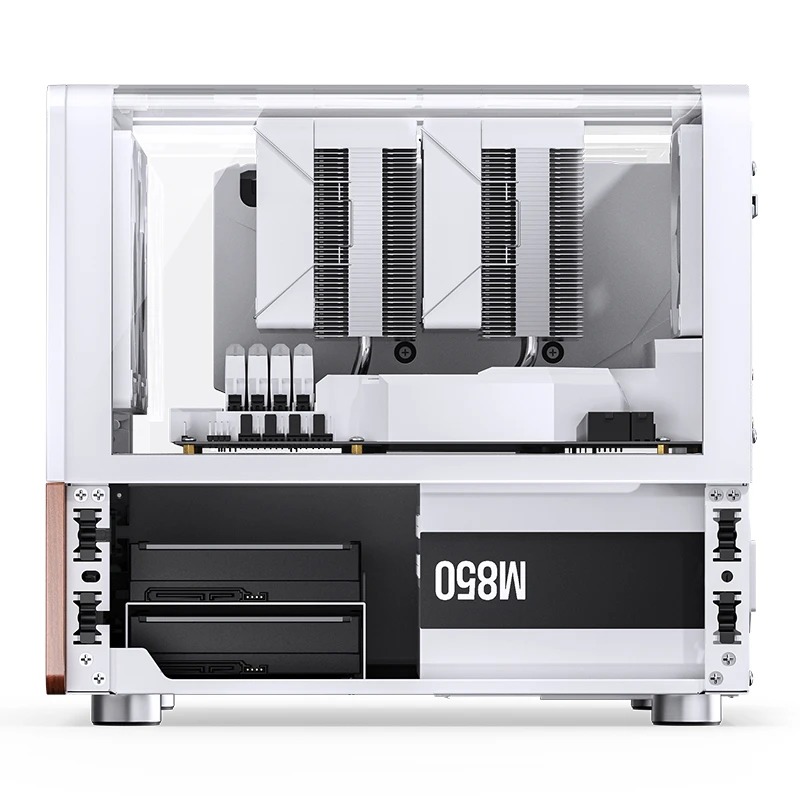

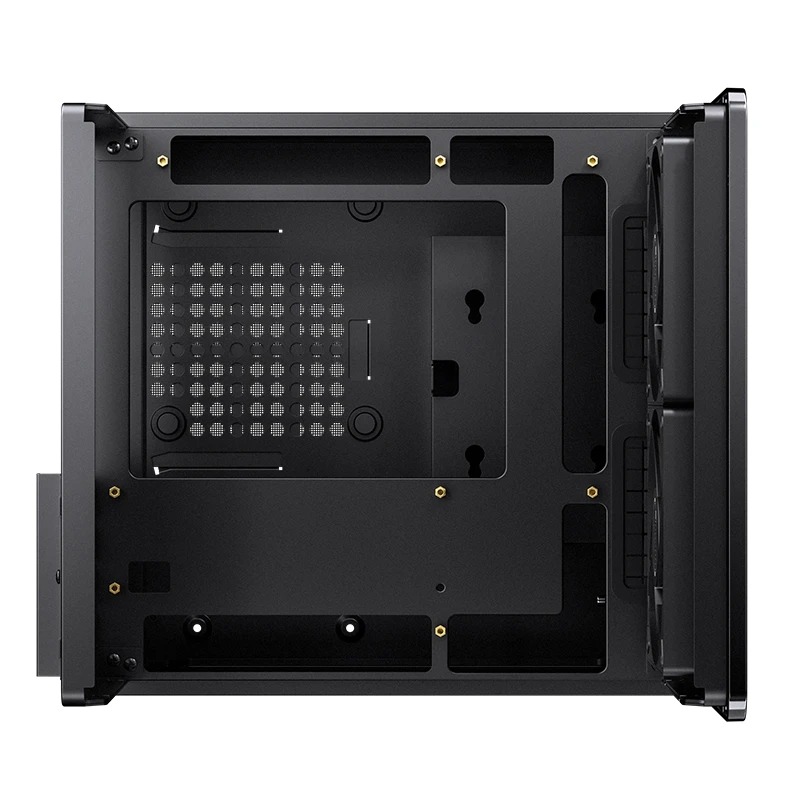

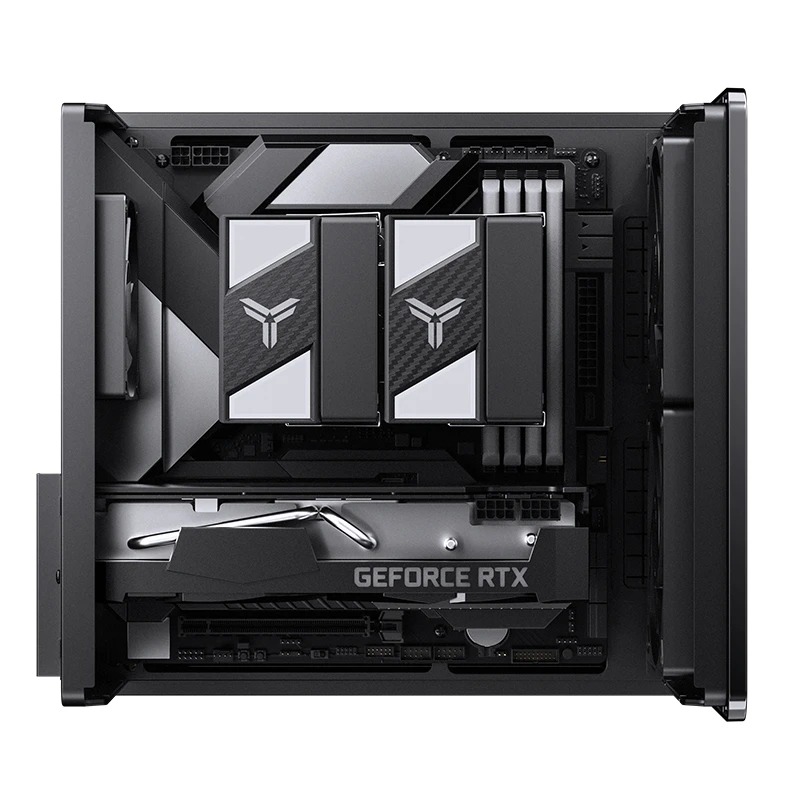

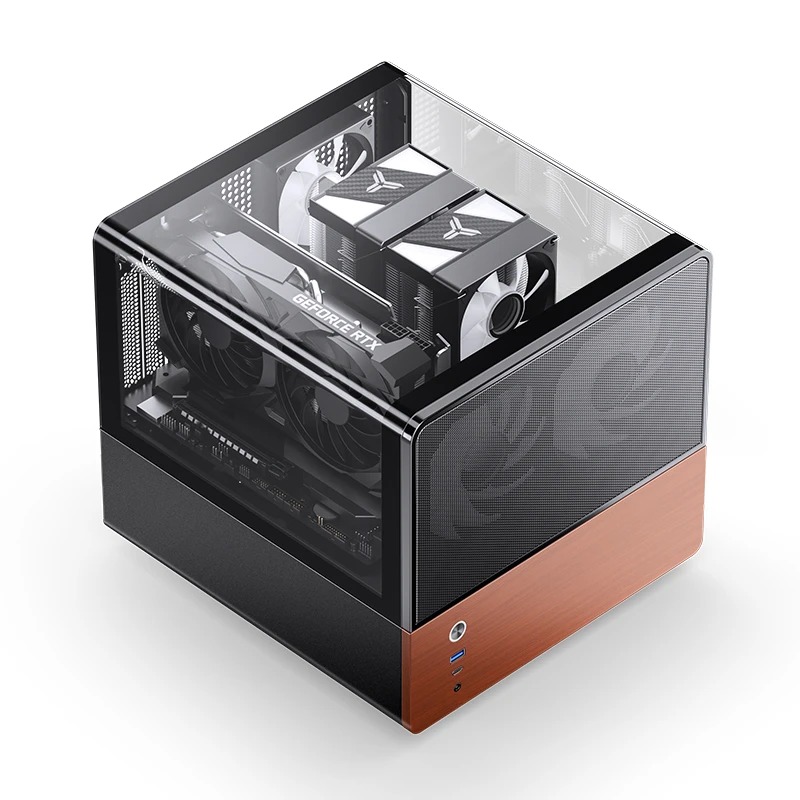

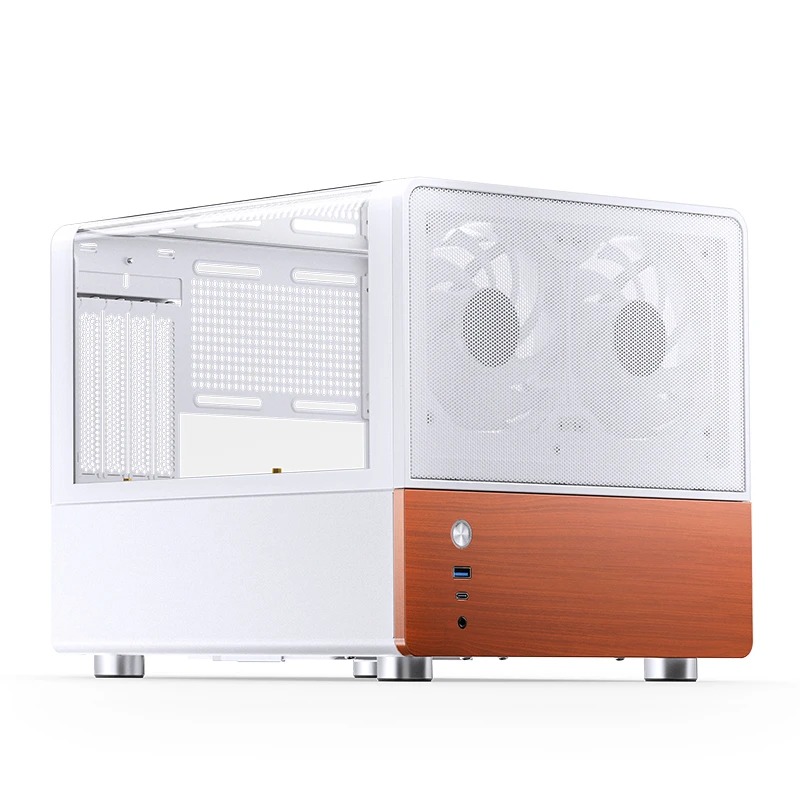

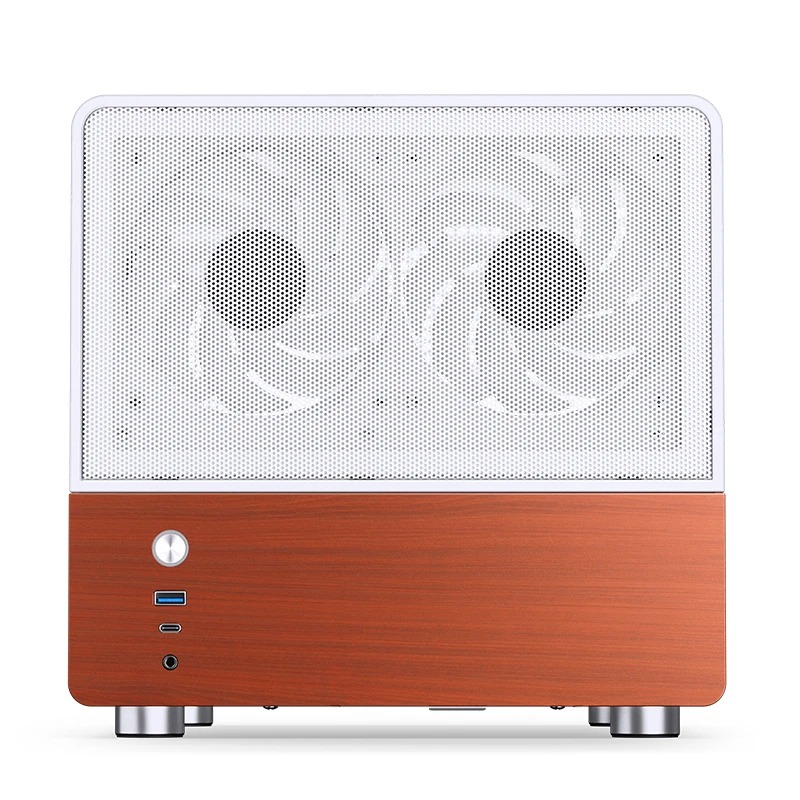

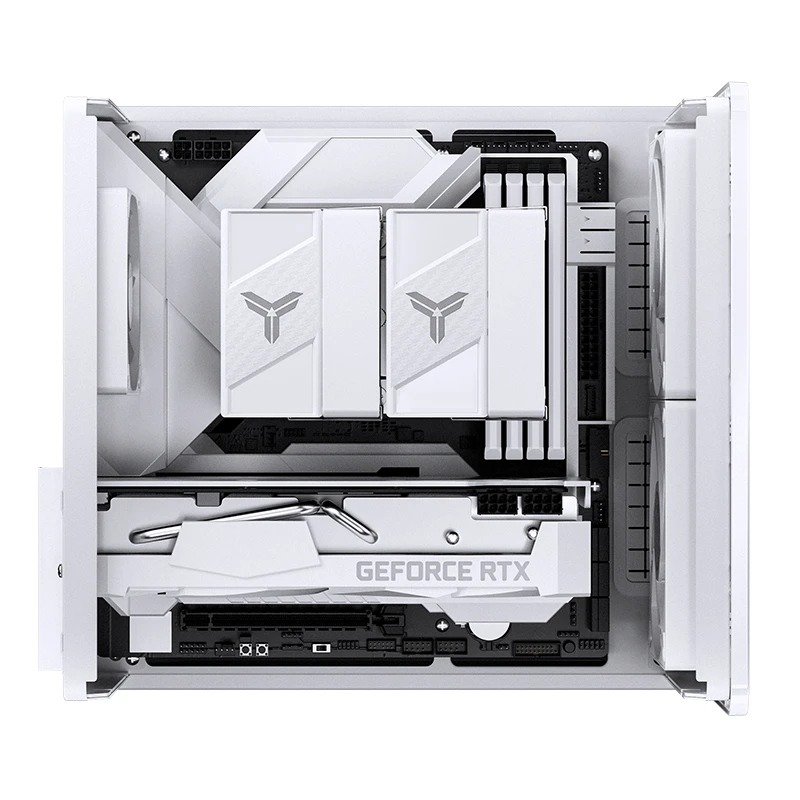

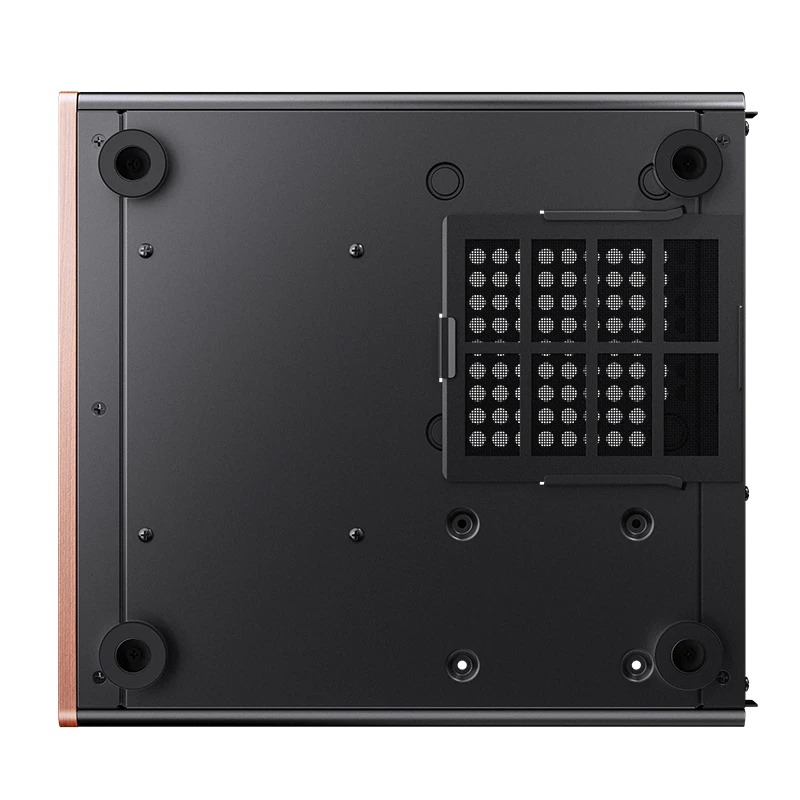

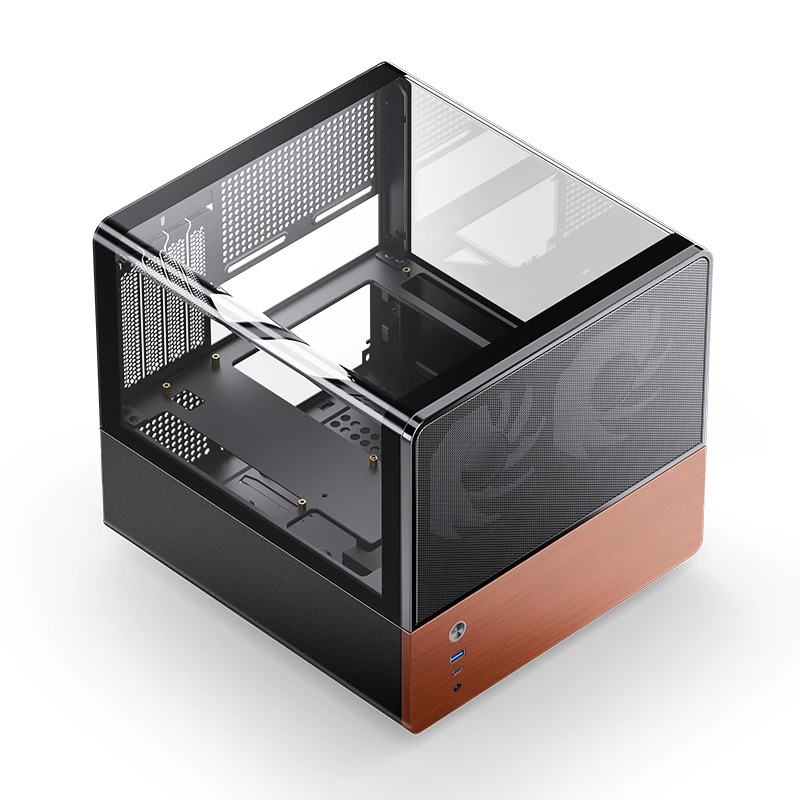

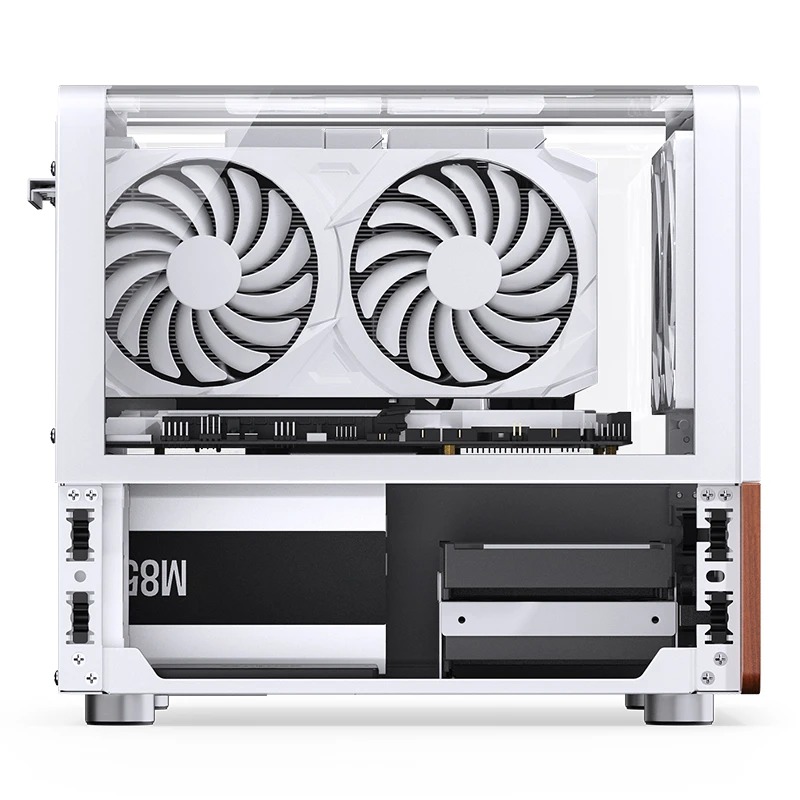

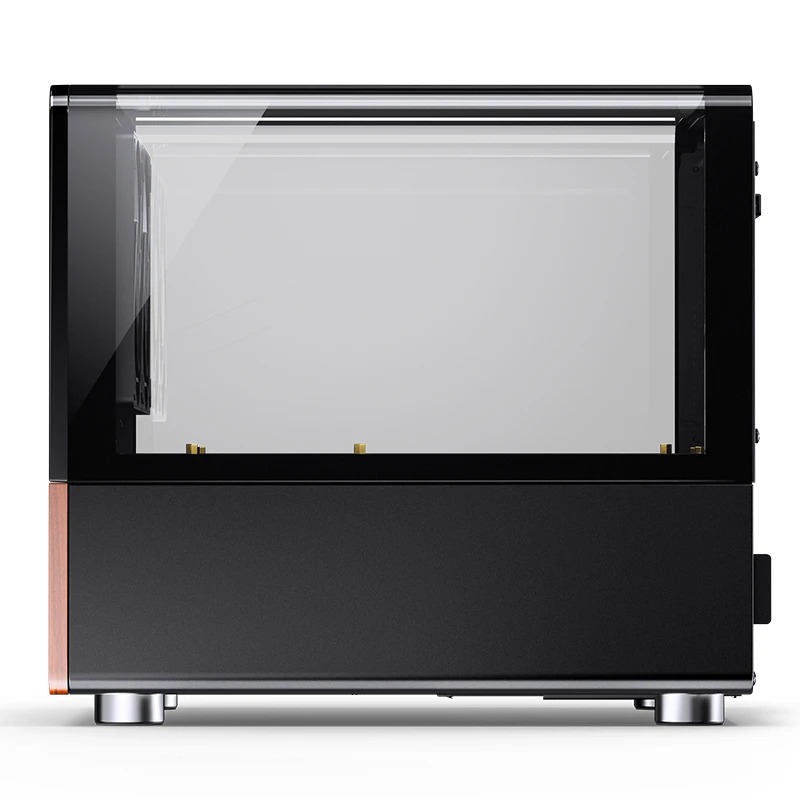

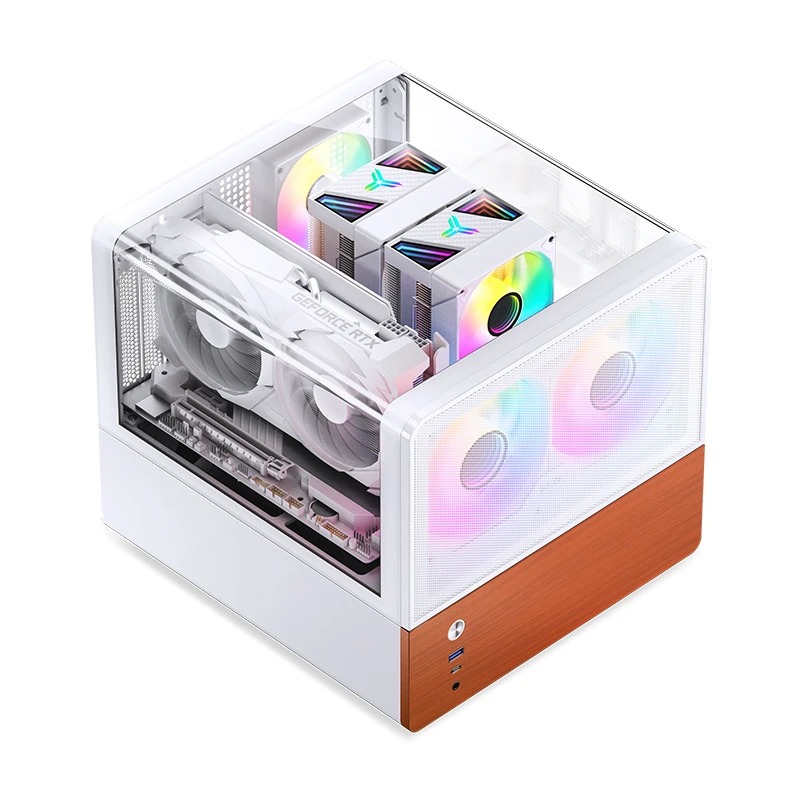

| Model | V12 |
| Colors | Black , White |
| Case Type | M-ATX |
| Motherboard | ITX / M-ATX |
| Materials | SGCC 1.0mm / Wood 8mm / Glass 4mm |
| Dimensions | 280mm(W) * 301mm(D) * 275.5mm(H) |
| Drive Bay | 3.5HDD*2+2.5SSD*1 / 3.5HDD*1+2.5SSD*2 |
| Maximum Compatibility | CPU Cooler Height: ≤140mm |
| Display Card Length: ≤ 260mm | |
| I/O Ports | UUSB3.2 Gen2 Type-C*1 |
| USB3.0*1 | |
| AUDIO*1+MIC*1(2 IN 1) | |
| Internal Drive Bays | 3.5HDD*2+2.5SSD*1 |
| 3.5HDD*1+2.5SSD*2 | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Rear 92mm*1 +80mm*1 (optional) | |
| Front 120mm*2(built-in) | |
| Net Weight | 5.52 KG |
| Color | Warranty | Specification |
| Black , White | 1-Y | Size : M-ATX |
| MB Support : M-ATX / ITX | ||
| Air Cooling Fans: | ||
| Color : ฺBlack , White | ||
| Front ports : USB3.2 Gen2 Type-C*1 / USB3.0*1 / AUDIO*1+MIC*1(2 IN 1) | ||
| Material : SGCC 1.0mm / Wood 8mm / Glass 4mm | ||
|
Display Card Length: ≤ 260mm CPU Cooler Height: ≤140mm |
| Model | Z20 |
| Colors | Black , White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | Z20 |
| Colors | Black , White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | Z20 |
| Colors | Pink/Black |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | Z20 |
| Colors | Pink/Black |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
The outer shell of UMX3 is fully made from aluminum magnesium alloy with Jonsbo team's accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuse the strong structure and good appearance of the product. Hidden cooling channels on the bottom and circular tool-less side plates show you the charm of endlessly innovative industrial design.
UMX3 is the third flagship of UMX series, it is designed to adapt MATX motherboard. The key breakthrough is optimized support for high-end hardware, with its good stack-based concept in such a small space UMX3 supports high-end dual slots display card with length not longer than 320mm, and surprisingly radiator with height not higher than 163mm, it actually supports most of the top air cooled radiator Besides, the full transparent acrylic side plate version UMX3 provides you a wide angle to see the hardware.
The outer shell of UMX3 is fully made from aluminum magnesium alloy with Jonsbo team's accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuse the strong structure and good appearance of the product. Hidden cooling channels on the bottom and circular tool-less side plates show you the charm of endlessly innovative industrial design.
UMX3 is the third flagship of UMX series, it is designed to adapt MATX motherboard. The key breakthrough is optimized support for high-end hardware, with its good stack-based concept in such a small space UMX3 supports high-end dual slots display card with length not longer than 320mm, and surprisingly radiator with height not higher than 163mm, it actually supports most of the top air cooled radiator Besides, the full transparent acrylic side plate version UMX3 provides you a wide angle to see the hardware.
SHADOW 360
Intel Socket LGA 2011/115X/775
AMD Socket FM2+/FM1/AM4/AM3/AM2+/AM2
The cooler pipe is designed to use 14 pipes to improve the heat dissipation
Built-in ultra quiet & high efficient Water Block and minimized
Tube Connection help Coolant rotate fast and stable
Easy Installation and Maintenance
No need to replace Coolant
3*120mm 5V ARGB quiet fans are used (PWM)
High efficient heat transfer by Aluminum alloy Radiator (360mm)
Super-thin design Water Block (Pump)
Pure cooper Water Block and Inner Micro-fin applied for quick heat transfer
Wear resistant flame retardant and anti leakage water pipe using EPDM+IIR material
Excellent compatibility supporting AMD/INTEL Motherboard
SHADOW 360
Intel Socket LGA 2011/115X/775
AMD Socket FM2+/FM1/AM4/AM3/AM2+/AM2
The cooler pipe is designed to use 14 pipes to improve the heat dissipation
Built-in ultra quiet & high efficient Water Block and minimized
Tube Connection help Coolant rotate fast and stable
Easy Installation and Maintenance
No need to replace Coolant
3*120mm 5V ARGB quiet fans are used (PWM)
High efficient heat transfer by Aluminum alloy Radiator (360mm)
Super-thin design Water Block (Pump)
Pure cooper Water Block and Inner Micro-fin applied for quick heat transfer
Wear resistant flame retardant and anti leakage water pipe using EPDM+IIR material
Excellent compatibility supporting AMD/INTEL Motherboard
Model：A4
Color：Silver / Gray / Black
Dimension：169mm(W)*273mm(H)*340mm(D)
Material：Top plate 3mm aluminum magnesium alloy;
Front plate/back plate/bottom plate 2mm aluminum magnesium alloy;
Hardware 1.5mm all black steel plate;
Side plate 3.00mm all tempered glass;
Motherboard： ITX
Drive Bay：2*2.5+1*3.5
Cooling System：Top: 120mm*2 (optional)； Bottom: 120mm*2 (optional)
Max. CPU Cooler Height：71mm
Max. Display Card Length：325mm
Front I/O Port：POWER*1 USB3.0*1
PCI Expansion Slot：2
PSU Support：SFX/SFX-L
Weight：Net 5.6KG
Model：A4
Color：Silver / Gray / Black
Dimension：169mm(W)*273mm(H)*340mm(D)
Material：Top plate 3mm aluminum magnesium alloy;
Front plate/back plate/bottom plate 2mm aluminum magnesium alloy;
Hardware 1.5mm all black steel plate;
Side plate 3.00mm all tempered glass;
Motherboard： ITX
Drive Bay：2*2.5+1*3.5
Cooling System：Top: 120mm*2 (optional)； Bottom: 120mm*2 (optional)
Max. CPU Cooler Height：71mm
Max. Display Card Length：325mm
Front I/O Port：POWER*1 USB3.0*1
PCI Expansion Slot：2
PSU Support：SFX/SFX-L
Weight：Net 5.6KG
