รายละเอียด
| Size | Warranty | Specification |

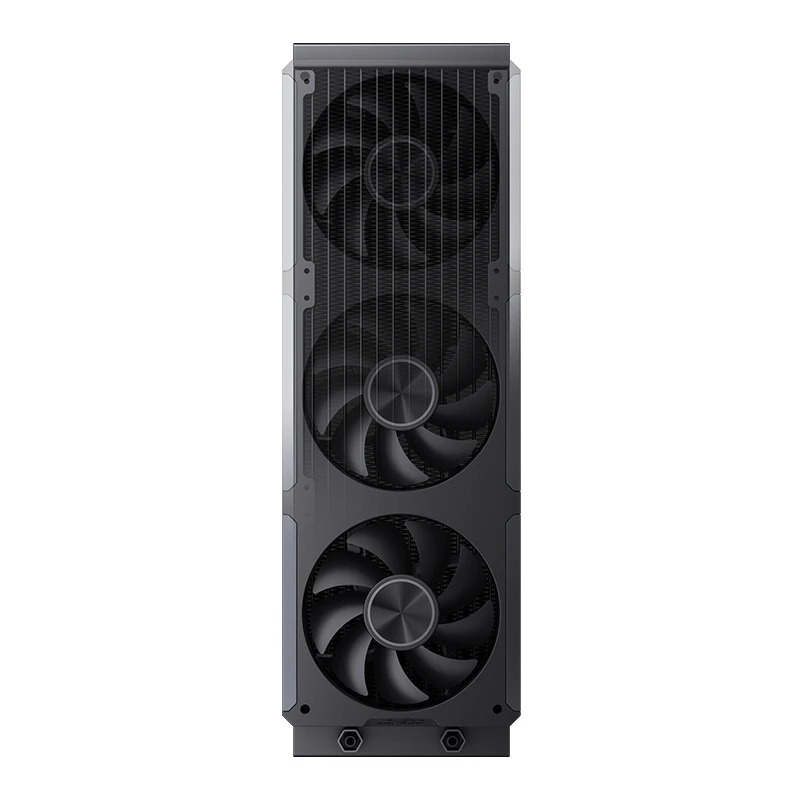

| 360 | 1 Year | 92.5mm*87.5mm*63mm;radiator:397mm*120mm*27mm;Fan:363.8mm*130mm*28mm |
| Fan Air Flow:21.46-62.40CFM(each) | ||
| Pump Speed:2500rpm(±10%) | ||
| Color : Black , White |

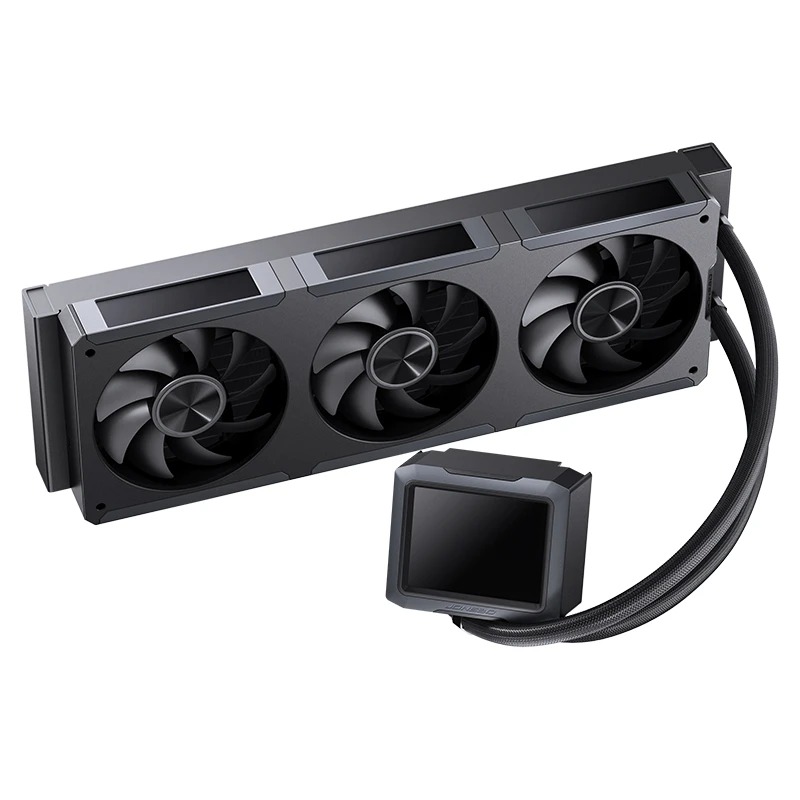

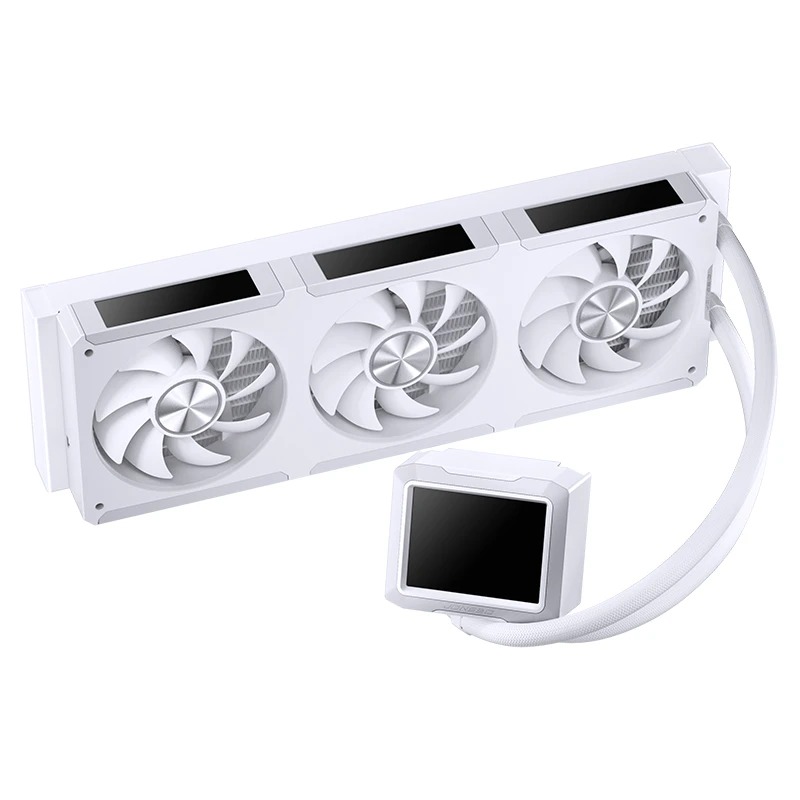

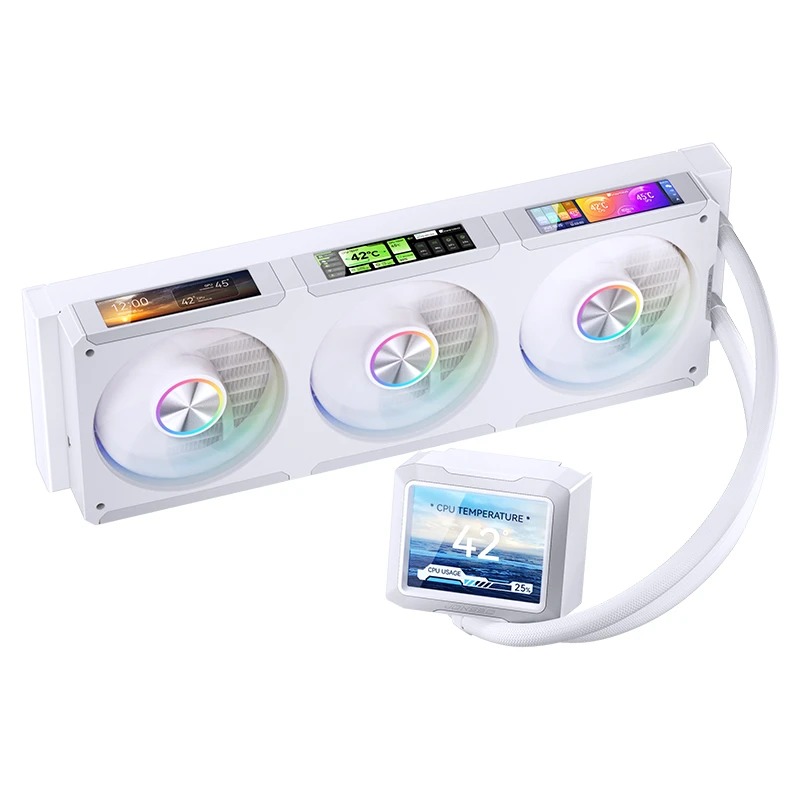

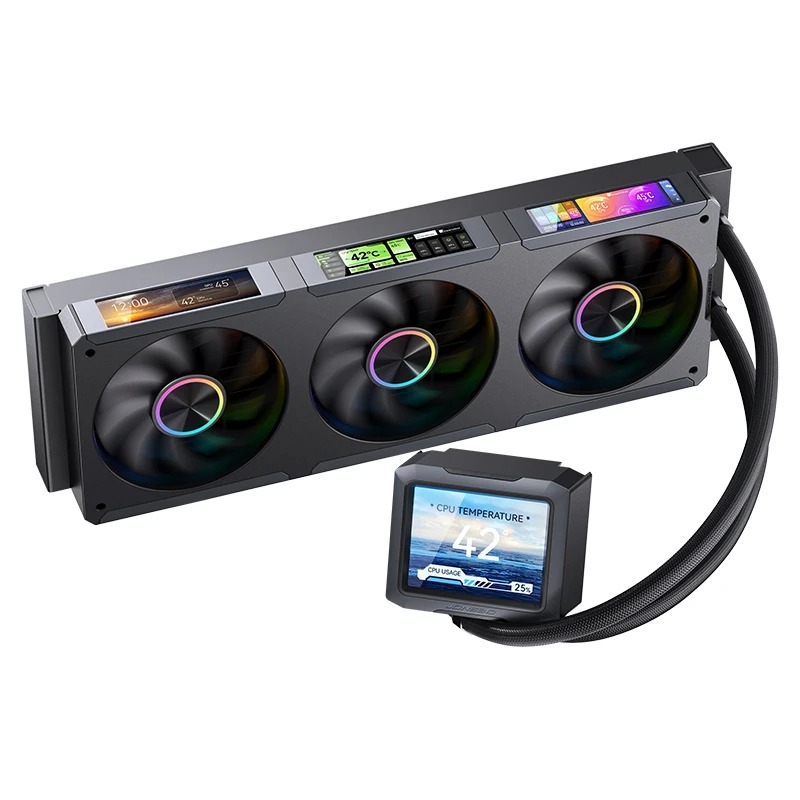

| Model | TF3-360SC |
| Color | Balck , White |

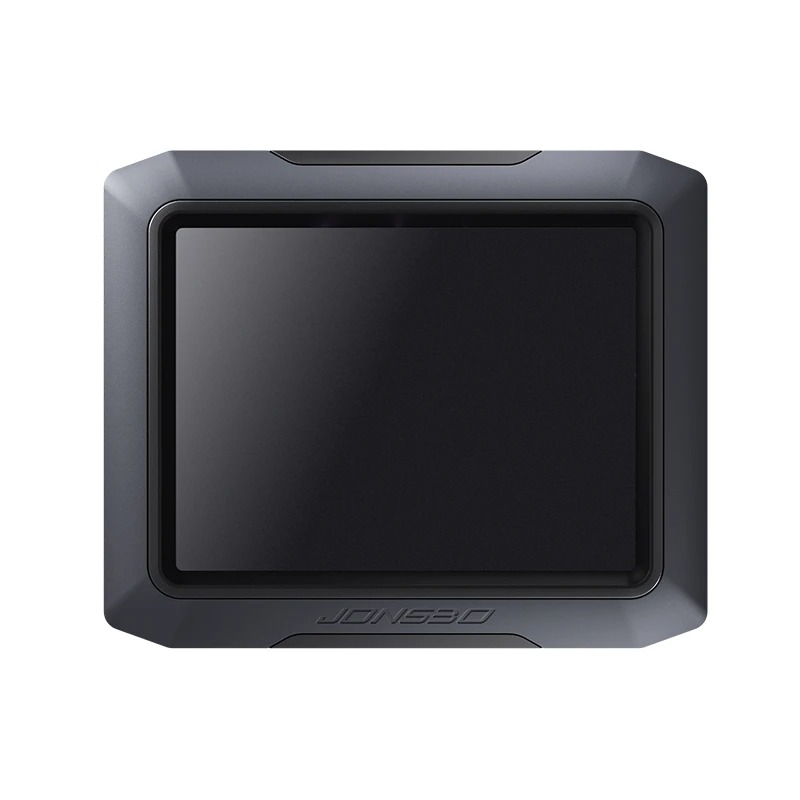

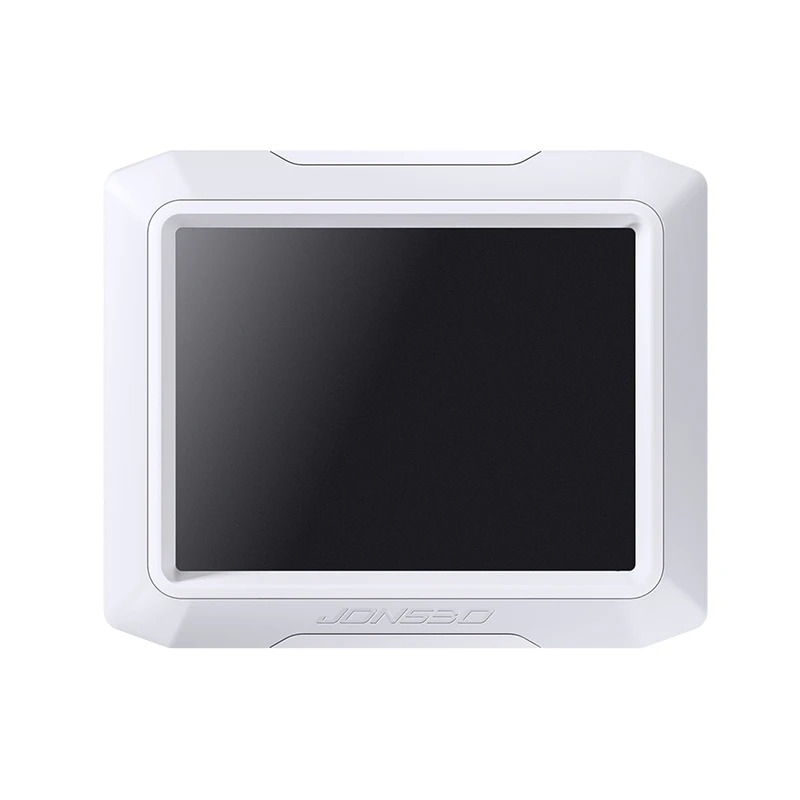

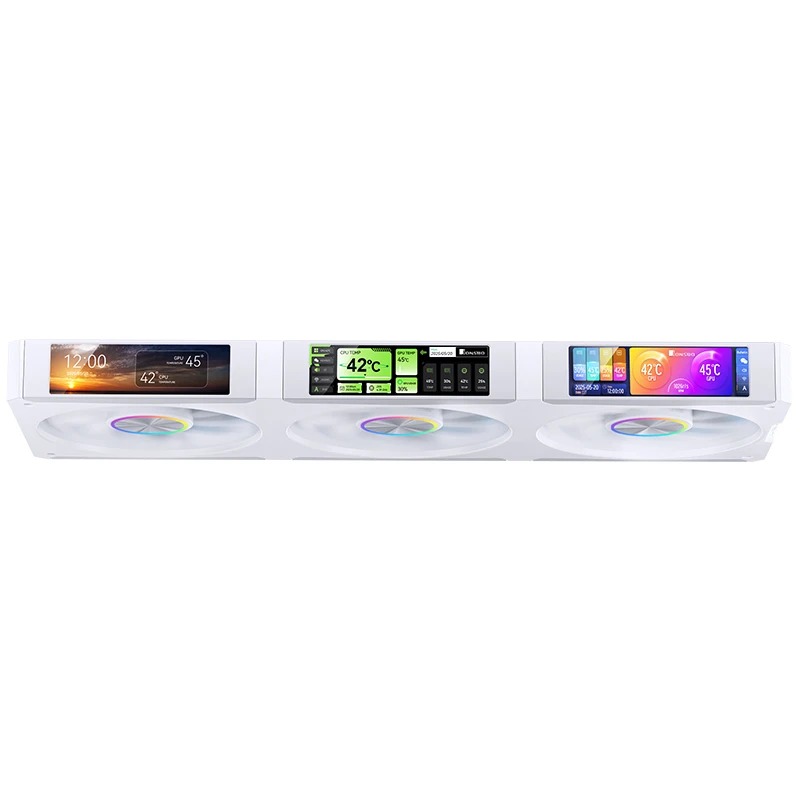

| Product type | IPS 4 screen water cooling |

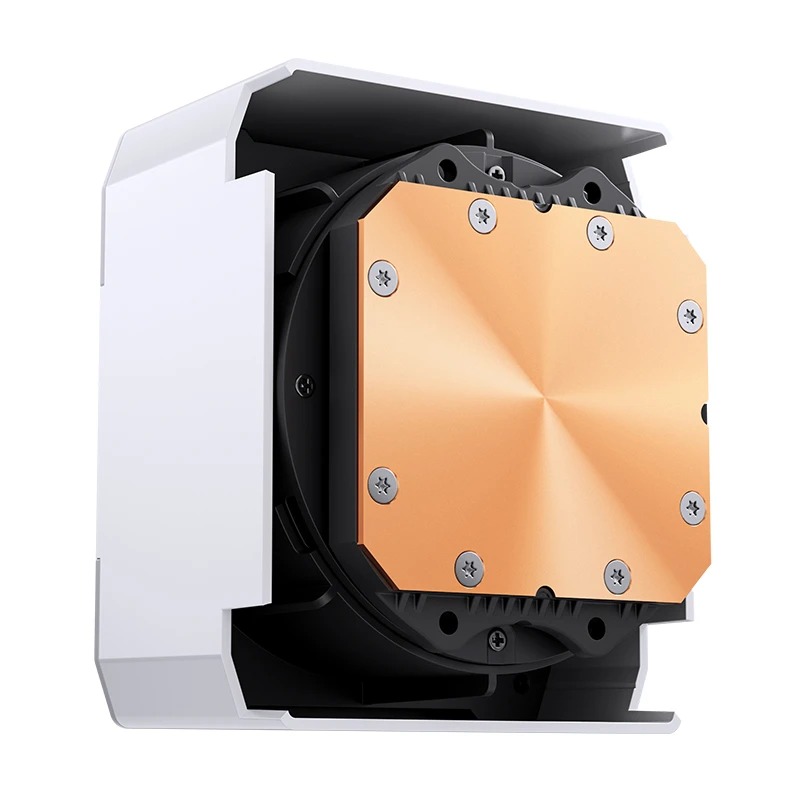

| Size:Pump | 92.5mm*87.5mm*63mm;radiator:397mm*120mm*27mm;Fan:363.8mm*130mm*28mm |
| Fan Air Flow | 21.46-62.40CFM(each) |
| Fan Bearing | Double ball bearings |
| Fan Speed | 700rpm~2400rpm(±10%) |
| Fan Connector | 4PIN PWM |
| Fan Noise Level | PWM 4PIN / ARGB 3PIN / LCD USB |
| Pump Power Consumption | ≤ 4.2W |
| Pump Noise Level | <30dB(A) |
| Pump Working Voltage | 12V DC |

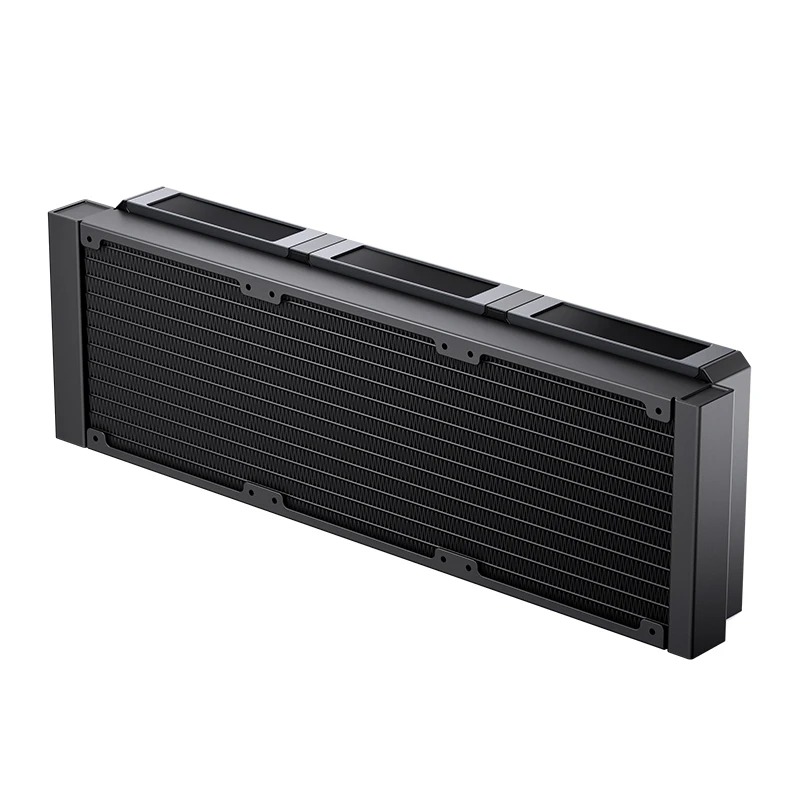

| Radiator Material | Aluminum |
| Pump Speed | 2500rpm(±10%) |
| Platform support | Intel LGA115X/1200/1366/2011/1700/1851; AMD AM4/AM5 |
| Size | Warranty | Specification |
| 360 | 1 Year | 92.5mm*87.5mm*63mm;radiator:397mm*120mm*27mm;Fan:363.8mm*130mm*28mm |
| Fan Air Flow:21.46-62.40CFM(each) | ||
| Pump Speed:2500rpm(±10%) | ||
| Color : Black , White |
| Model | Z20 |
| Colors | Pink/Black |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm,depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD:up to 1,depends on other hardware configurations |
| 2.5〞SSD:up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top:120mm*2/140mm*2;Rear:120mm*1/92mm*1; Bottom:120mm*2/140mm*2,depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top,up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | Z20 |
| Colors | Pink/Black |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm,depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD:up to 1,depends on other hardware configurations |
| 2.5〞SSD:up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top:120mm*2/140mm*2;Rear:120mm*1/92mm*1; Bottom:120mm*2/140mm*2,depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top,up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
UMX4 series are fully made from aluminum magnesium Alloy, with Jonsbo team's accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuse the strong structure and good appearance of the product. Hidden cooling channels on the bottom show you the charm of endlessly innovative industrial design.
In the end of 2015, fully tempered glass used in automobile industry is used for making the transparent side panel of UMX series cases. In addition to provide wide-angle display for illuminated hardware, fully tempered glass brings an unexpected solution for isolating noise and resonance.
UMX4 series are fully made from aluminum magnesium Alloy, with Jonsbo team's accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuse the strong structure and good appearance of the product. Hidden cooling channels on the bottom show you the charm of endlessly innovative industrial design.
In the end of 2015, fully tempered glass used in automobile industry is used for making the transparent side panel of UMX series cases. In addition to provide wide-angle display for illuminated hardware, fully tempered glass brings an unexpected solution for isolating noise and resonance.
| Model:MOD 5 |
| Color:Black / Grey |
| Dimension:255MM (W) * 600MM (D) * 635MM (H) |
| Material:2.0 - 3.0mm Aluminum alloy panel +4mm tempered glass panel |
| Motherboard: ATX, MATX, ITX |
| Drive Bay:2.5SSD/3.5HDD*3, 3.5HDD*1 or 3.5HDD*4 |
| Cooling Systerm:Top:2*120mm Fan(Optional);Front:3*120mm Fan(Optional);bottom:3*120MM Fan(Optional);back:1*120MM Fan(Optional) |
| Liquid Cooler:360*2(Optional)+240*1(Optional) or 240*3(Optional) |
| CPU Cooler:Not higher than 180mm |
| Display Card:Not higher than 400mm |
| Front I/O Port:USB3.0*2 , Audio*1 , MIC*1, Type-C*1 |
| Expansion Slot:7 |
| Power Supply:ATX PSII (Not higher than 220mm) |
| Weight:9KG |
| Model:MOD 5 |
| Color:Black / Grey |
| Dimension:255MM (W) * 600MM (D) * 635MM (H) |
| Material:2.0 - 3.0mm Aluminum alloy panel +4mm tempered glass panel |
| Motherboard: ATX, MATX, ITX |
| Drive Bay:2.5SSD/3.5HDD*3, 3.5HDD*1 or 3.5HDD*4 |
| Cooling Systerm:Top:2*120mm Fan(Optional);Front:3*120mm Fan(Optional);bottom:3*120MM Fan(Optional);back:1*120MM Fan(Optional) |
| Liquid Cooler:360*2(Optional)+240*1(Optional) or 240*3(Optional) |
| CPU Cooler:Not higher than 180mm |
| Display Card:Not higher than 400mm |
| Front I/O Port:USB3.0*2 , Audio*1 , MIC*1, Type-C*1 |
| Expansion Slot:7 |
| Power Supply:ATX PSII (Not higher than 220mm) |
| Weight:9KG |
| Model | Z20 |
| Colors | Pink/White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm,depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD:up to 1,depends on other hardware configurations |
| 2.5〞SSD:up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top:120mm*2/140mm*2;Rear:120mm*1/92mm*1; Bottom:120mm*2/140mm*2,depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top,up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | Z20 |
| Colors | Pink/White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm,depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD:up to 1,depends on other hardware configurations |
| 2.5〞SSD:up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top:120mm*2/140mm*2;Rear:120mm*1/92mm*1; Bottom:120mm*2/140mm*2,depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top,up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
Model:BO 100
Color:Black / Silver
Material :Dimension:239mm(W) x 282mm(H) x 233mm(L) (not include case stand and handle)
Weight: NW 4.5KG / GW 5.6KGMotherboard:ITX,DTX(170mm*203mm
Storage : 1*3.5”HDD+2*2.5”SSD
GPU Support: 207 mm (L)*140 MM(H) *48 MM(W)
Max. CPU Cooler Height:158.5 mm
Radiator Support: 120 MM Radiator.Part of the water-cooled cold head may interfere with the cold exhaust fan if the diameter is too large. Generally, cold heads with a diameter of 70 mm can be installed. Because the position of the motherboard CPU cannot be unified, this size is only for reference.Front I/O Port:1*TYPE-C(USB3.1 Gen2),2*USB3.0,1*two in one audio port (Combined 4 pole)
PSU Support:SFX/SFX-L(If the bottom SSD is not installed, it has no effect on the length of the power supply. If the bottom SSD is installed, the power support length needs to be within 118 mm)
PCI slots: 2
Model:BO 100
Color:Black / Silver
Material :Dimension:239mm(W) x 282mm(H) x 233mm(L) (not include case stand and handle)
Weight: NW 4.5KG / GW 5.6KGMotherboard:ITX,DTX(170mm*203mm
Storage : 1*3.5”HDD+2*2.5”SSD
GPU Support: 207 mm (L)*140 MM(H) *48 MM(W)
Max. CPU Cooler Height:158.5 mm
Radiator Support: 120 MM Radiator.Part of the water-cooled cold head may interfere with the cold exhaust fan if the diameter is too large. Generally, cold heads with a diameter of 70 mm can be installed. Because the position of the motherboard CPU cannot be unified, this size is only for reference.Front I/O Port:1*TYPE-C(USB3.1 Gen2),2*USB3.0,1*two in one audio port (Combined 4 pole)
PSU Support:SFX/SFX-L(If the bottom SSD is not installed, it has no effect on the length of the power supply. If the bottom SSD is installed, the power support length needs to be within 118 mm)
PCI slots: 2
| Color | Warranty | Specification |
| Black | 1 Year | DIMENSIONS : 169mm(W)*273mm(H)*340mm(D) |
| MATERIAL:Aluminium Magnesium alloy | ||
| SURFACE TREATMENT:Polishing+Sandblasting |
| Color | Warranty | Specification |
| Black | 1 Year | DIMENSIONS : 169mm(W)*273mm(H)*340mm(D) |
| MATERIAL:Aluminium Magnesium alloy | ||
| SURFACE TREATMENT:Polishing+Sandblasting |
