Description
| Model | Warranty | Specification |
| HP-600 Black | 1 Year | Dimensions： 120 mm(L)*120mm(W)*66mm(H) |
| Heatpipe size：Φ6mm*6 PCS | ||
| Scope of Application：LGA 115X/1200/1700 AMD：AM4/AM5 | ||
| Color : Black , White |

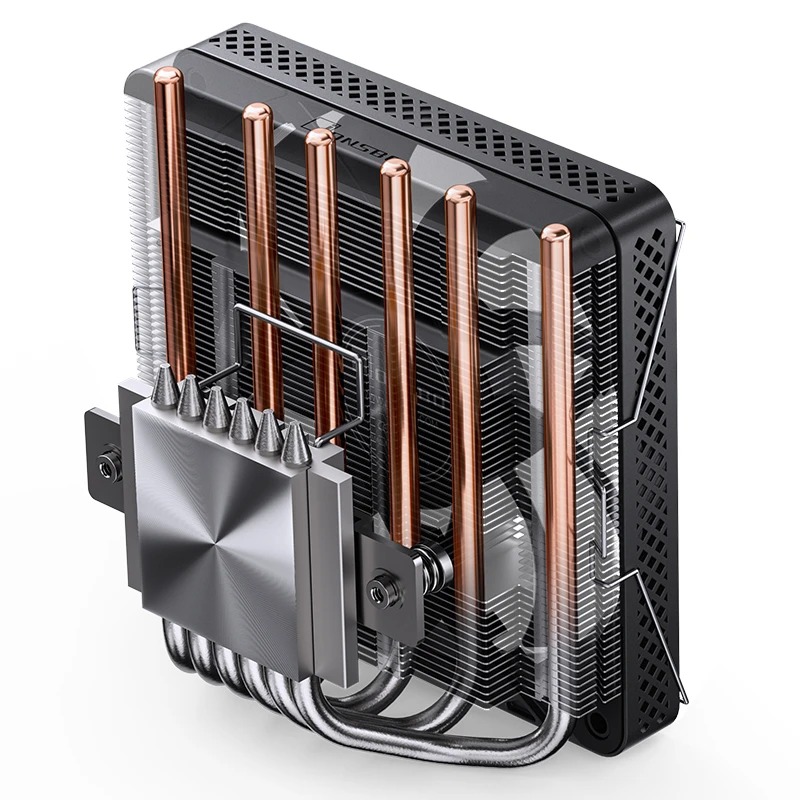

HP-600 Black
| Model | HP-600 Black |
| Color | Balck |
| Product type | Air Cooling Radiator |
| Dimensions | 120 mm(L)*120mm(W)*66mm(H) |
| Heatpipe size | Φ6mm*6PCS |
| D-TDP | 210W |
| Fan Dimensions | 120mm* 120mm* 15mm |
| Fan Speed | 800 -1800RPM(±10%) |
| Fan Air Flow | 23.46-61.51 CFM(MAX) |
| Fan Air Pressure | 0.29-1.71 mmH2O(MAX) |
| Fan Noise Level | 18.3-37.2 dB(A)(MAX) |
| Power Consumption | 2.64W |
| Fan MTTF | ≥40000h @25℃ |
| Rated Voltage | Fan 12V |
| Platform support | INTEL: LGA 1700/1200/115X/1851 AMD: AM4/AM5 |
