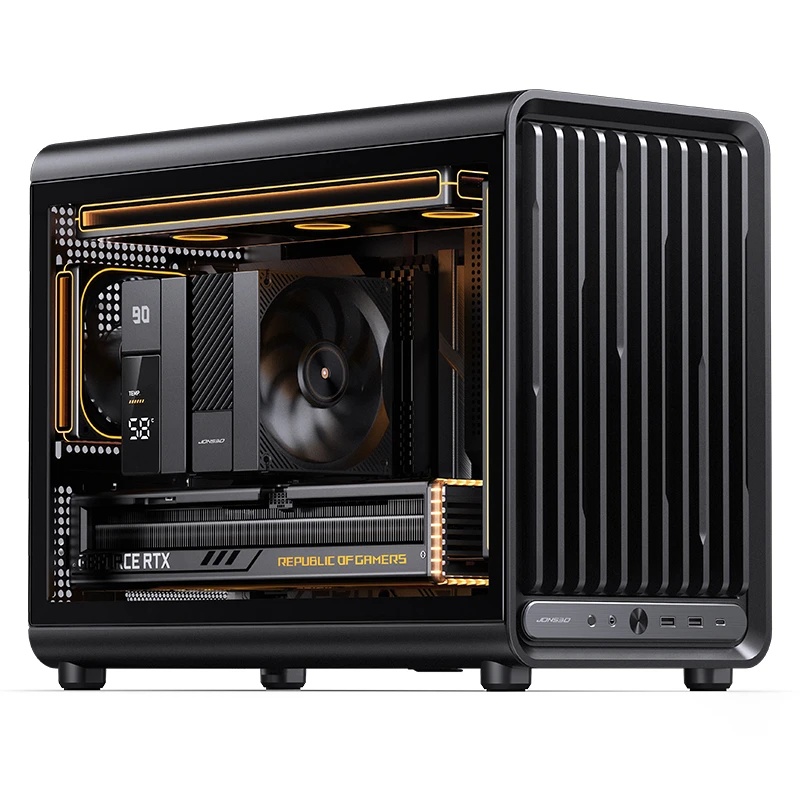

| Model | D33 |
| Color | Black , White , Wood Black , Wood White |
| Dimension | 455(D)*238.2mm(W)*368.4mm(H) (with feet/without protrusions) |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Drive Bay | 3.5″HDD*2 / 2.5” SSD*2 |
| Expansion Slots | 4 |
| FAN | Top：120mm*3(optional)； Front：120mm*2(with ATX PSU)/ 140mm*2(with SFX PSU)(optional)； Rear：120mm*1(optional)； Bottom：120mm*3(optional |
| Radiator Clearance：Top | 240mm / 360mm*1 |
| PSU Clearance | ATX PS2 / SFX≤160mm |
| CPU Air Cooler Clearance | 172mm |
| GPU Clearance | ≤435mm |
| Front I/O | USB3.2 Gen2 Type-C*1/USB3.0*2/AUDIO*1+MIC*1(2 in 1) |
| N.W./ G.W. | 6.7kg / 8.1kg |
| Color | Warranty | Specification |
| Black , White, Wood Black ,Wood White |
1-Y | Size : M-ATX |
| MB Support : Mini-ITX / Micro-ATX | ||
| Cooling System: 120mm*3(optional)； Front：120mm*2(with ATX PSU)/ 140mm*2(with SFX PSU)(optional)； Rear：120mm*1(optional)； Bottom：120mm*3(optional | ||
| Radiator Clearance：Top：240mm / 360mm*1 | ||
| Front ports : USB3.2 Gen2 Type-C*1/USB3.0*2/AUDIO*1+MIC*1(2 in 1) | ||
| Expansion Slots：4 | ||
|
Max. Display Card Length: ≤435mm |
| Color |
|---|
U5 is a product developed based on ATX motherboard specifications. The shell is made of 2.0MM aluminum magnesium alloy The main purpose of U5 development is to further optimize the length support of video card an power supply of Jonsbo middle-level aluminum case, to increase the height support for backplate wiring management, and to optimize the top spacing for better liquid cooler support. In the heat dissipation, 3 fans design on the bottom improve the air intake of the case and so optimize the overall heat dissipation performance. With numerous optimizations, there is no restriction for supporting high-end hardware anymore, users can easily build an unlimited high-performance computing platform with elegant metal texture.
U5 is a product developed based on ATX motherboard specifications. The shell is made of 2.0MM aluminum magnesium alloy The main purpose of U5 development is to further optimize the length support of video card an power supply of Jonsbo middle-level aluminum case, to increase the height support for backplate wiring management, and to optimize the top spacing for better liquid cooler support. In the heat dissipation, 3 fans design on the bottom improve the air intake of the case and so optimize the overall heat dissipation performance. With numerous optimizations, there is no restriction for supporting high-end hardware anymore, users can easily build an unlimited high-performance computing platform with elegant metal texture.
| Model：DY-2 GPU 3*8Pin |
| Dimension：Whole unit 345mm Cable 300mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 1.22A |
| Power Consumption：Cable 2.1KW Light 6.1W |
| Connector：3*8Pin/5V ARGB |
| Model：DY-2 GPU 3*8Pin |
| Dimension：Whole unit 345mm Cable 300mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 1.22A |
| Power Consumption：Cable 2.1KW Light 6.1W |
| Connector：3*8Pin/5V ARGB |
| Model | C6 Handle |
| Colors | Black , White |
| Case Type | M-ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length: ≤ 200-255mm |
| CPU Heatsink Height: ≤75mm | |
| I/O Ports | Type-C(20PIN) |
| USB3.0*1 | |
| AUDIO*1+MIC*1(Headset+mic combined) | |
| Internal Drive Bays | 2.5SSD*2 |
| 3.5HDD*1 | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top 120mm*1 or 140mm*1 | |
| Bottom 120mm*1 or 140mm*1 | |
| Front 120mm*1 or HDD | |
| Product Dimensions | 202mm(W) * 266mm(D) * 295.2mm(H) |
| (W x D x H) | |
| Net Weight | 2.3 KG |
| Gross Weight | 2.80 KG |
| Model | C6 Handle |
| Colors | Black , White |
| Case Type | M-ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length: ≤ 200-255mm |
| CPU Heatsink Height: ≤75mm | |
| I/O Ports | Type-C(20PIN) |
| USB3.0*1 | |
| AUDIO*1+MIC*1(Headset+mic combined) | |
| Internal Drive Bays | 2.5SSD*2 |
| 3.5HDD*1 | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top 120mm*1 or 140mm*1 | |
| Bottom 120mm*1 or 140mm*1 | |
| Front 120mm*1 or HDD | |
| Product Dimensions | 202mm(W) * 266mm(D) * 295.2mm(H) |
| (W x D x H) | |
| Net Weight | 2.3 KG |
| Gross Weight | 2.80 KG |
| Model | FR-505 |
| Color | Black , White |
| Dimension | 120mm（L）*120mm（W）*25mm（H） |
| Speed | 800-1800rpm(±10%） |
| Air Flow | 20.98-47.2CFM |
| Noise Level | 13.3-30dB(A)(MAX) |
| Voltage | FAN DC12V LED 5V |
| Current | FAN 0.25A(MAX) LED 1.3A(MAX) |
| Input Power | FAN 3W(MAX) LED 6.5W(MAX) |
| Static pressure | 0.32-1.6mmH2O |
| MTTF | ≥ 40000h Room Temp:25 ℃ |
| Connector | FAN 1*4P LED 1*3P |
| Model | FR-505 |
| Color | Black , White |
| Dimension | 120mm（L）*120mm（W）*25mm（H） |
| Speed | 800-1800rpm(±10%） |
| Air Flow | 20.98-47.2CFM |
| Noise Level | 13.3-30dB(A)(MAX) |
| Voltage | FAN DC12V LED 5V |
| Current | FAN 0.25A(MAX) LED 1.3A(MAX) |
| Input Power | FAN 3W(MAX) LED 6.5W(MAX) |
| Static pressure | 0.32-1.6mmH2O |
| MTTF | ≥ 40000h Room Temp:25 ℃ |
| Connector | FAN 1*4P LED 1*3P |
| Model：DY-2 GPU 2*8Pin (6+2) |
| Dimension：Whole unit 345mm Cable 300mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 0.81A |
| Power Consumption：Cable 2.1KW Light 4.05W |
| Connector：2*8Pin /5V ARGB |
| Model：DY-2 GPU 2*8Pin (6+2) |
| Dimension：Whole unit 345mm Cable 300mm |
| Voltage：Cable 300V Light 5V |
| Current：Cable 7A Light 0.81A |
| Power Consumption：Cable 2.1KW Light 4.05W |
| Connector：2*8Pin /5V ARGB |
