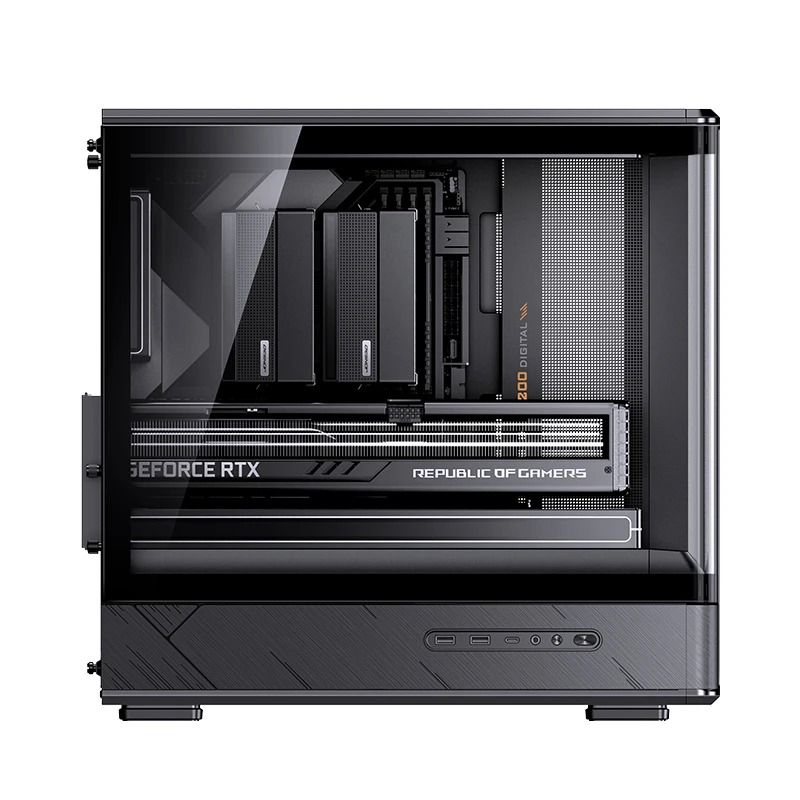

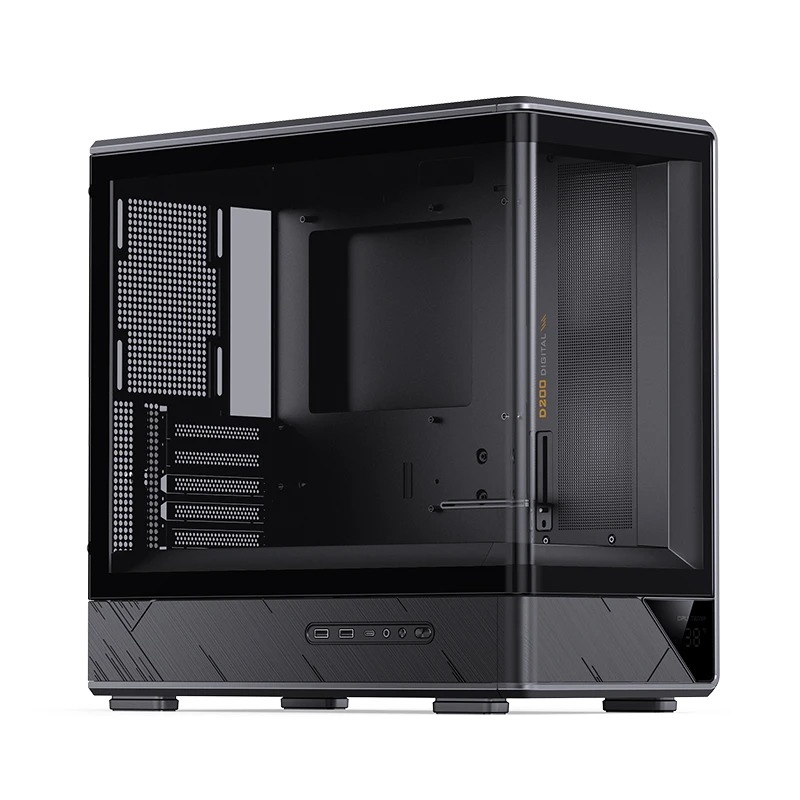

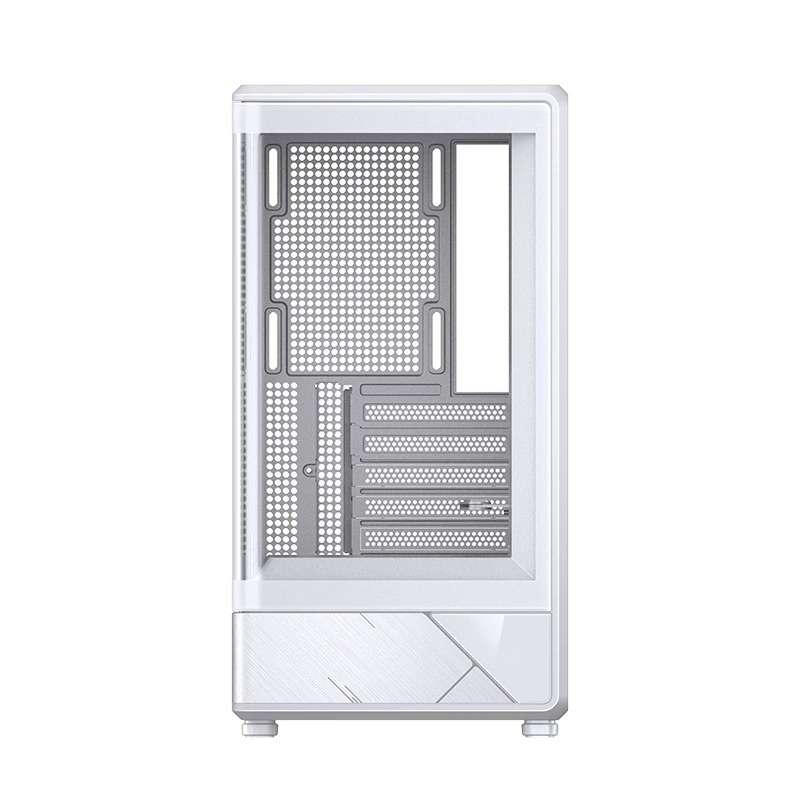

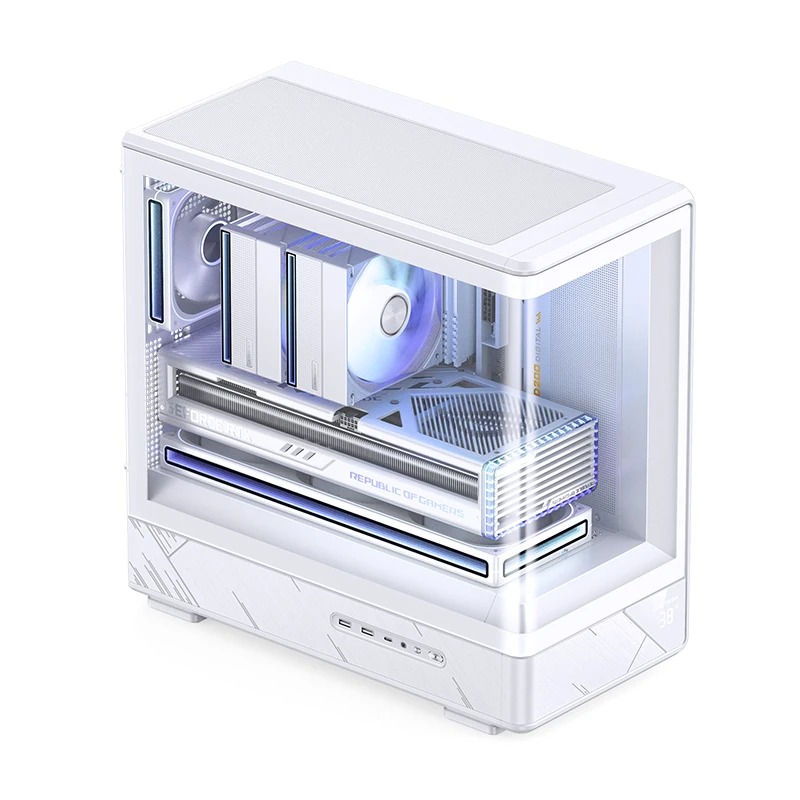

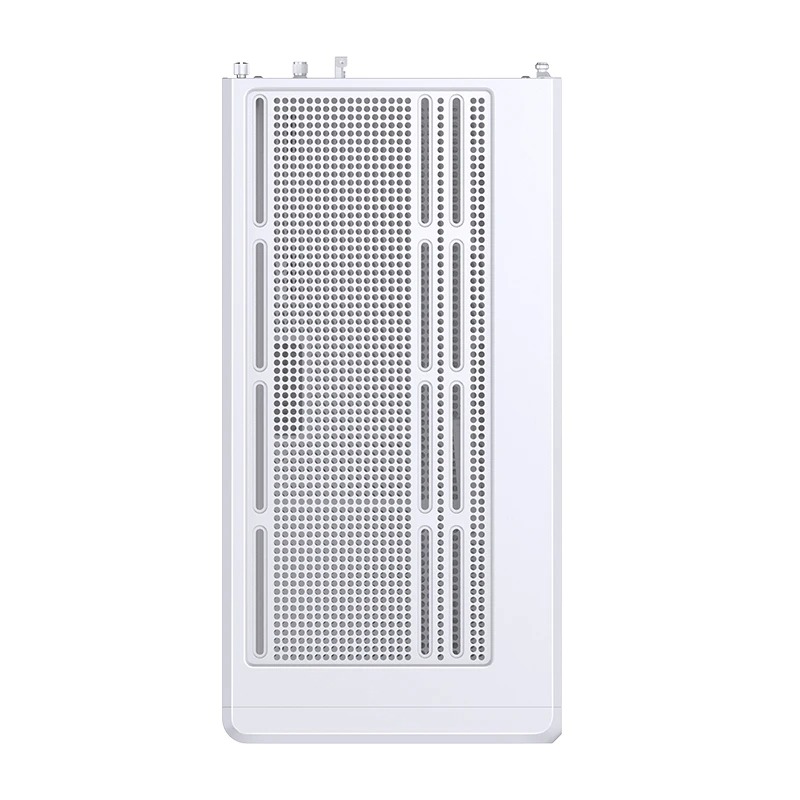

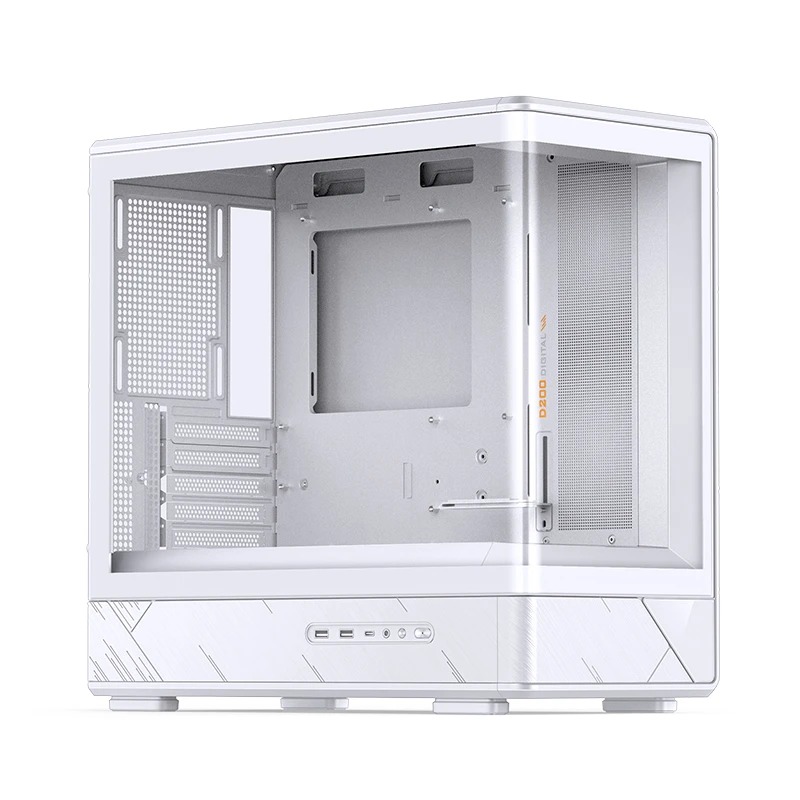

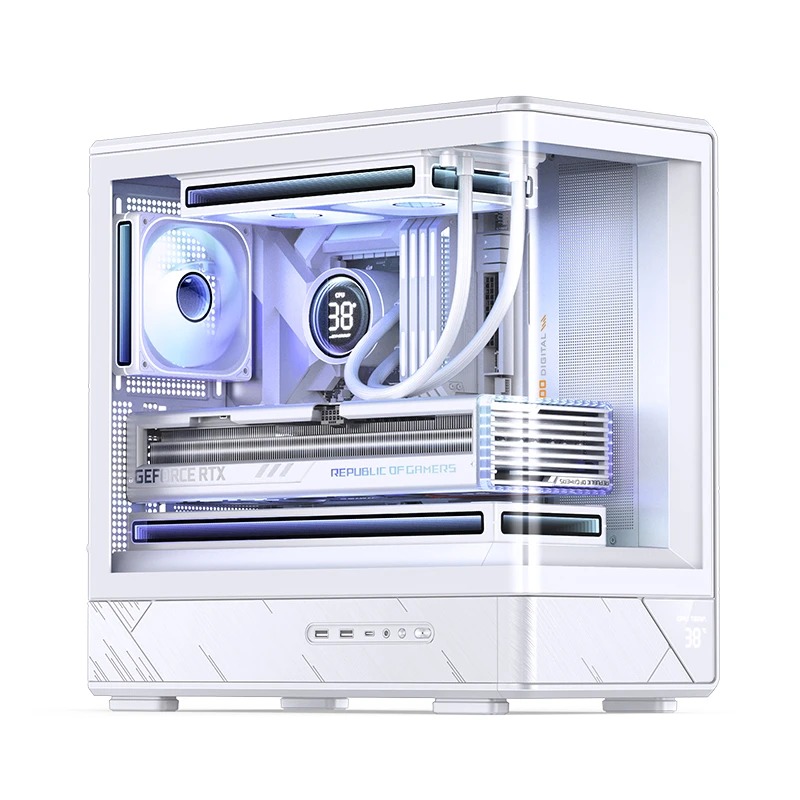

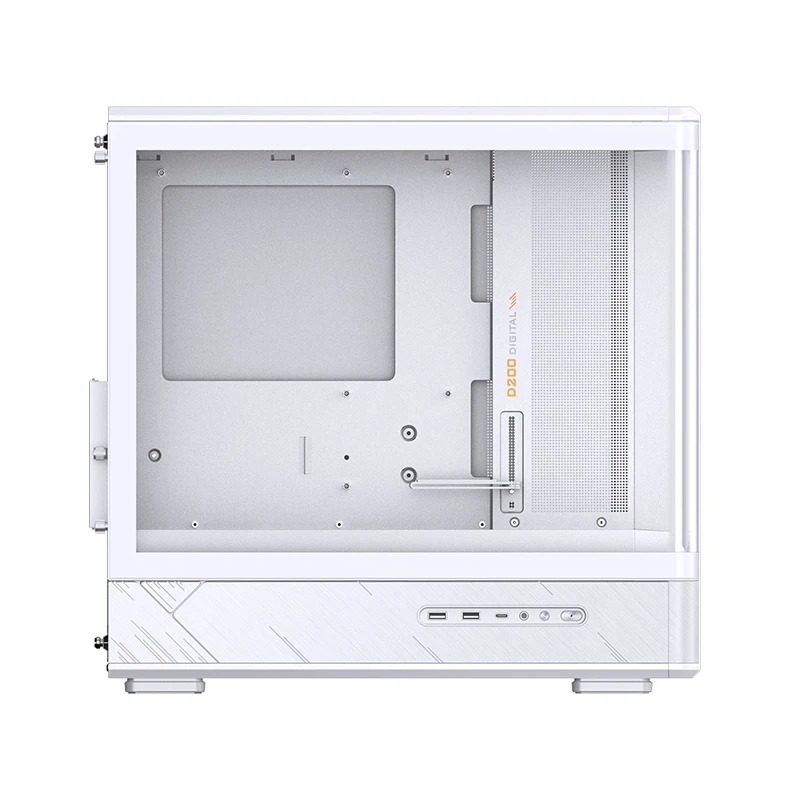

| Model | D200 |
| Colors | Black , White |
| Case Type | MATX |
| Materials | SPCC / Tempered Glass / ABS |
| M/B Compatibility | ITX / M-ATX |
| Expansion Slots | 5 Slots |

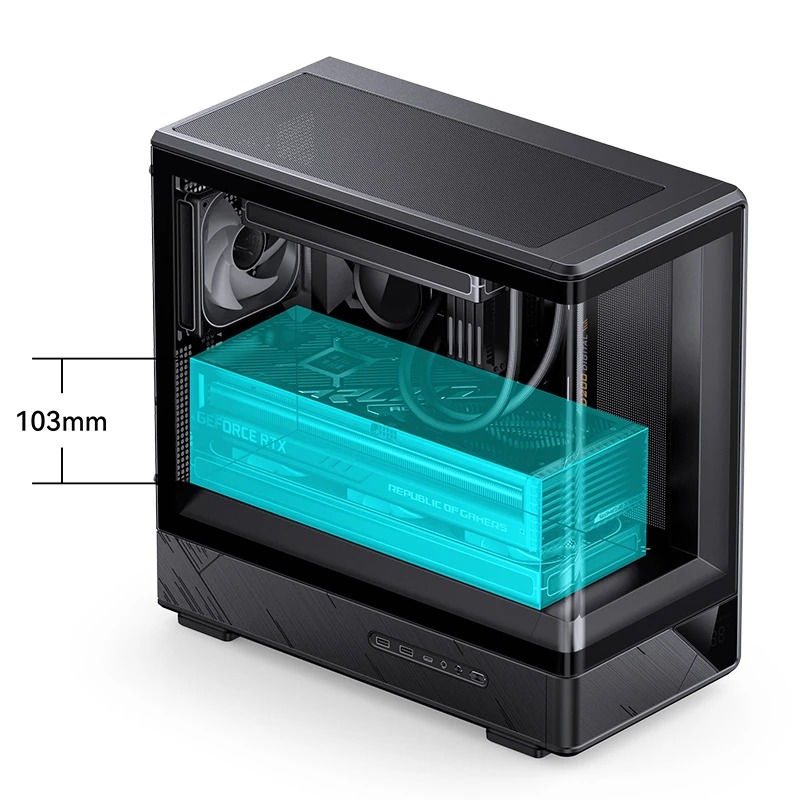

| Maximum Compatibility | VGA Card Length: ≤410mm |
| CPU Heatsink Height: 171mm | |
| I/O Ports | USB3.2 Gen2 Type-C*1 |
| USB3.0*2 | |
| AUDIO & MIC*1 | |

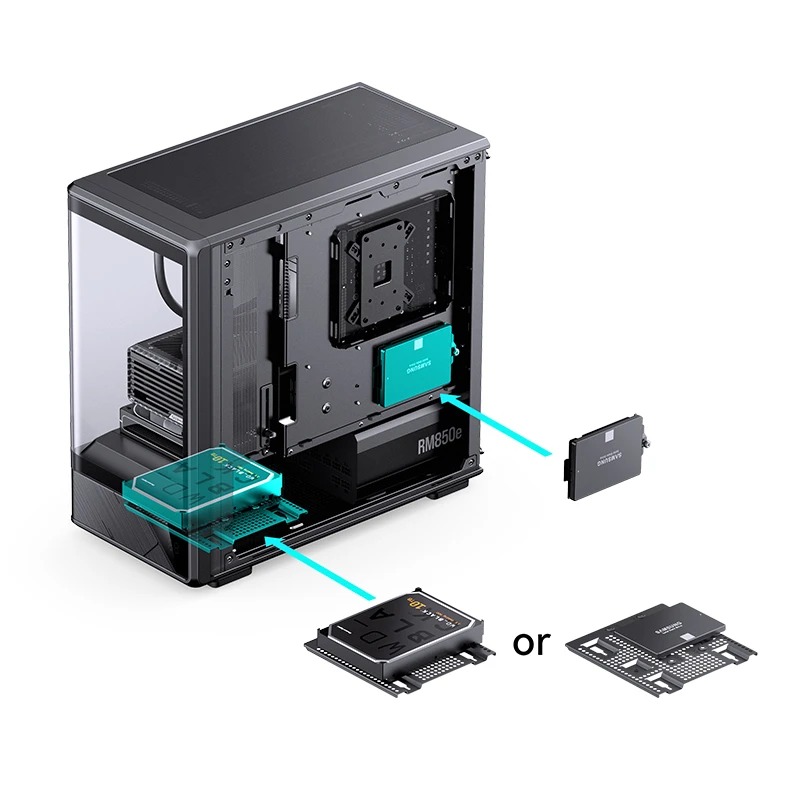

| Internal Drive Bays | 2.5″SSD*1 , 3.5″HDD*1 or 2.5″SSD*1 |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top 120mm*3/140*2(optional) | |
| Rear 120mm*1(optional) | |
| Power Compartment 120mm*3(optional) | |
| Water Cooling Radiator: | |
| Top 240mm*1 (optional) | |
| Product Dimensions | 437mm (D) * 216mm (W) * 419mm (H) |
| Net Weight | 6.11 KG |
| Gross Weight | 9.0 KG |
| Color | Warranty | Specification |
| Black , White | 1-Y | Size : MATX |
| MB Support : ITX / M-ATX | ||
| Air Cooling Fans:
Top 120mm*3/140*2(optional); Rear 120mm*1(optional); Power Compartment 120mm*3(optional) Water Cooling Radiator: |
||
| Color : Black , White | ||
| Front ports : USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO*1+MIC*1(2 in 1） |
||
| Material : SPCC / Tempered Glass / ABS | ||
| VGA Card Length: ≤410mm CPU Heatsink Height: 171mm |
| Model | Z20 |
| Colors | Pink/White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | Z20 |
| Colors | Pink/White |
| Case Type | ATX |
| Materials | 0.7mm steel |
| M/B Compatibility | Mini-ITX / Micro-ATX |
| Maximum Compatibility | VGA Card Length:Up to 363mm，depends on other hardware configurations |
| CPU Heatsink Height: 164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) | |
| I/O Ports | USB3.2 Gen1 Type-A*1 |
| USB3.2 Gen 2 Type-C*1 | |
| AUDIO*1 & MIC*1 | |
| Internal Drive Bays | 3.5〞HDD：up to 1,depends on other hardware configurations |
| 2.5〞SSD：up to 3,depends on other hardware configurations | |
| Thermal Solution Compatibility | Air Cooling Fans: |
| Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations | |
| Water Cooling Radiator: | |
| Top，up to 240mm | |
| Product Dimensions | 370mm * 186mm* 295mm(depth/width/height) (w/o handle/feet and other protrusions) |
| (L x W x H) | |
| Net Weight | 5.0 KG |
| Gross Weight | 6.50 KG |
| Model | N1 |
| Dimension | 170mm(W) * 354mm(D) * 217mm(H) |
| Material：External cover | 3mm Aluminum alloy; Internal Structure: 1mm Steel |
| Drive Bay | 2.5SSD*1 / 3.5HDD*5 |
| Motherboard | ITX |
| PCI Expansion Slot | 1 x Low profile single slot |
| Front I/O Port | Type-C (20-pin)/ USB3.0*1 / Audio*1 ( Headset+mic combined) |
| PSU Support | SFX≤150mm |
| Max. CPU Cooler Height | ≤70mm |
| Max. Display Card Length: ≤ | 185mm long ( Low profile) |
| Cooling System | 140mm fan*1（built-in） |
| Net Weight | 3.8kg |
| Model | N1 |
| Dimension | 170mm(W) * 354mm(D) * 217mm(H) |
| Material：External cover | 3mm Aluminum alloy; Internal Structure: 1mm Steel |
| Drive Bay | 2.5SSD*1 / 3.5HDD*5 |
| Motherboard | ITX |
| PCI Expansion Slot | 1 x Low profile single slot |
| Front I/O Port | Type-C (20-pin)/ USB3.0*1 / Audio*1 ( Headset+mic combined) |
| PSU Support | SFX≤150mm |
| Max. CPU Cooler Height | ≤70mm |
| Max. Display Card Length: ≤ | 185mm long ( Low profile) |
| Cooling System | 140mm fan*1（built-in） |
| Net Weight | 3.8kg |
Model：BO 100
Color：Black / Silver
Material :Dimension：239mm(W) x 282mm(H) x 233mm(L) (not include case stand and handle)
Weight: NW 4.5KG / GW 5.6KGMotherboard：ITX,DTX（170mm*203mm
Storage : 1*3.5”HDD+2*2.5”SSD
GPU Support: 207 mm (L)*140 MM(H) *48 MM(W)
Max. CPU Cooler Height：158.5 mm
Radiator Support: 120 MM Radiator.Part of the water-cooled cold head may interfere with the cold exhaust fan if the diameter is too large. Generally, cold heads with a diameter of 70 mm can be installed. Because the position of the motherboard CPU cannot be unified, this size is only for reference.Front I/O Port：1*TYPE-C（USB3.1 Gen2)，2*USB3.0，1*two in one audio port (Combined 4 pole)
PSU Support：SFX/SFX-L(If the bottom SSD is not installed, it has no effect on the length of the power supply. If the bottom SSD is installed, the power support length needs to be within 118 mm)
PCI slots: 2
Model：BO 100
Color：Black / Silver
Material :Dimension：239mm(W) x 282mm(H) x 233mm(L) (not include case stand and handle)
Weight: NW 4.5KG / GW 5.6KGMotherboard：ITX,DTX（170mm*203mm
Storage : 1*3.5”HDD+2*2.5”SSD
GPU Support: 207 mm (L)*140 MM(H) *48 MM(W)
Max. CPU Cooler Height：158.5 mm
Radiator Support: 120 MM Radiator.Part of the water-cooled cold head may interfere with the cold exhaust fan if the diameter is too large. Generally, cold heads with a diameter of 70 mm can be installed. Because the position of the motherboard CPU cannot be unified, this size is only for reference.Front I/O Port：1*TYPE-C（USB3.1 Gen2)，2*USB3.0，1*two in one audio port (Combined 4 pole)
PSU Support：SFX/SFX-L(If the bottom SSD is not installed, it has no effect on the length of the power supply. If the bottom SSD is installed, the power support length needs to be within 118 mm)
PCI slots: 2
Model：i100 Pro (Tempered Glass)
Color：Black / Silver
Material : ·Front and rear and boths sides panel : 3.0mm aluminum alloy panel with 120#-150# sandblasting finishing ·Grille top Cover: ABS + PC Mechanical purposes plastic ·Inner structure: 1.0 +1.5mm steel panel with black powder coat finishing ·Dual layers Case stand with aluminum alloyDimension：194mm(W) x 307mm(H) x 435mm(L) (not include case stand)
Motherboard： ITX / DTX
Storage : 1×3.5",2×2.5" Or 3×2.5"
GPU Support: 345-373mm (L)*160mm(H) *62mm (W) max (Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm(L))
Max. CPU Cooler Height：166 max for Horizontal Mode / 77mm max for Vertical Mode
Radiator Support: 360/280/240/120 (fan +radiator max thickness : 55mm)Front I/O Port：USB 3.1 Gen2 TYPE-C×1, USB3 .0×1, AUDIO×1, MIC×1
PSU Support：w/o bottom fan: ATX PSII/SFX : 175mm max length
PCI-e 3.0 16 X 8Gs riser caber includedModel：i100 Pro (Tempered Glass)
Color：Black / Silver
Material : ·Front and rear and boths sides panel : 3.0mm aluminum alloy panel with 120#-150# sandblasting finishing ·Grille top Cover: ABS + PC Mechanical purposes plastic ·Inner structure: 1.0 +1.5mm steel panel with black powder coat finishing ·Dual layers Case stand with aluminum alloyDimension：194mm(W) x 307mm(H) x 435mm(L) (not include case stand)
Motherboard： ITX / DTX
Storage : 1×3.5",2×2.5" Or 3×2.5"
GPU Support: 345-373mm (L)*160mm(H) *62mm (W) max (Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm(L))
Max. CPU Cooler Height：166 max for Horizontal Mode / 77mm max for Vertical Mode
Radiator Support: 360/280/240/120 (fan +radiator max thickness : 55mm)Front I/O Port：USB 3.1 Gen2 TYPE-C×1, USB3 .0×1, AUDIO×1, MIC×1
PSU Support：w/o bottom fan: ATX PSII/SFX : 175mm max length
PCI-e 3.0 16 X 8Gs riser caber included
U5 is a product developed based on ATX motherboard specifications. The shell is made of 2.0MM aluminum magnesium alloy The main purpose of U5 development is to further optimize the length support of video card an power supply of Jonsbo middle-level aluminum case, to increase the height support for backplate wiring management, and to optimize the top spacing for better liquid cooler support. In the heat dissipation, 3 fans design on the bottom improve the air intake of the case and so optimize the overall heat dissipation performance. With numerous optimizations, there is no restriction for supporting high-end hardware anymore, users can easily build an unlimited high-performance computing platform with elegant metal texture.
U5 is a product developed based on ATX motherboard specifications. The shell is made of 2.0MM aluminum magnesium alloy The main purpose of U5 development is to further optimize the length support of video card an power supply of Jonsbo middle-level aluminum case, to increase the height support for backplate wiring management, and to optimize the top spacing for better liquid cooler support. In the heat dissipation, 3 fans design on the bottom improve the air intake of the case and so optimize the overall heat dissipation performance. With numerous optimizations, there is no restriction for supporting high-end hardware anymore, users can easily build an unlimited high-performance computing platform with elegant metal texture.
