รายละเอียด
| Model | Warranty | Specification |
| CR-1000MAX ARGB | 1 Year | Dimensions： 120 mm(L)*71mm(W)*154mm(H) |
| Heatpipe size：Φ6mm*6PCS | ||
| Scope of Application： INTEL: LGA 1700/1200/115X/1851 AMD: AM4/AM5 | ||
| Color : Black , White |

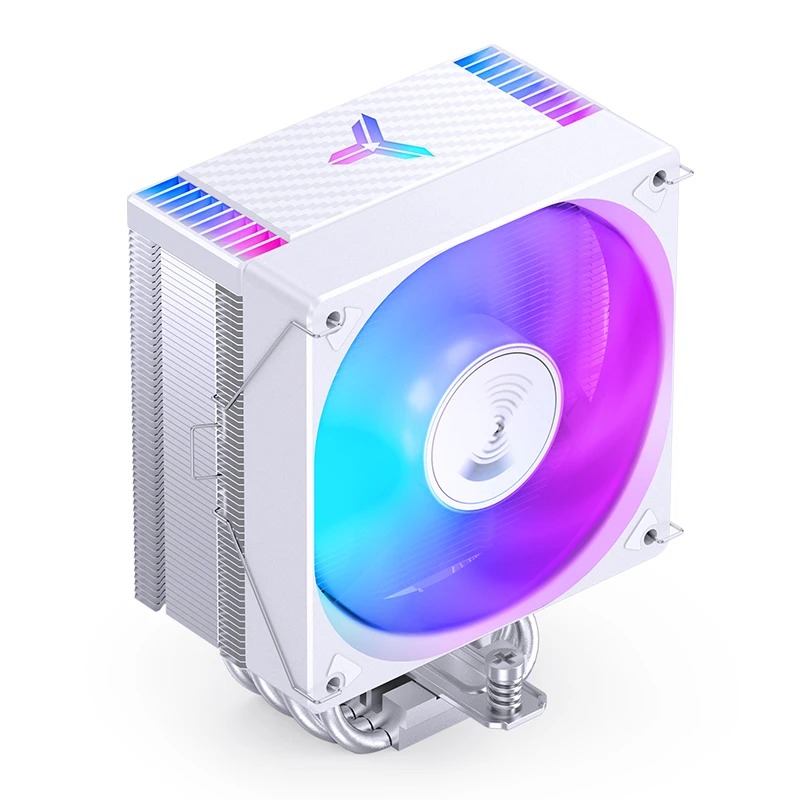

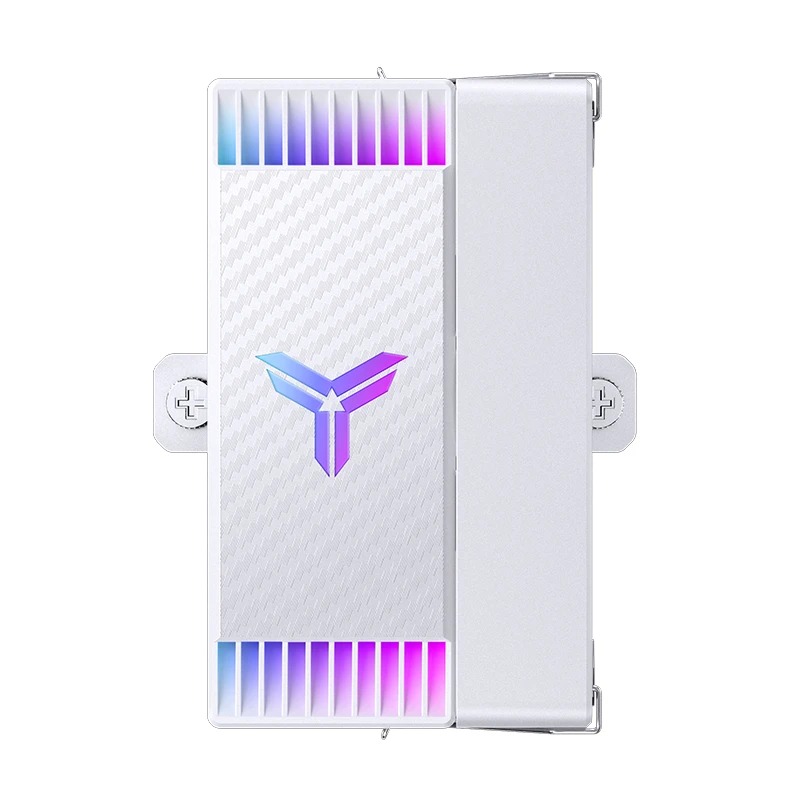

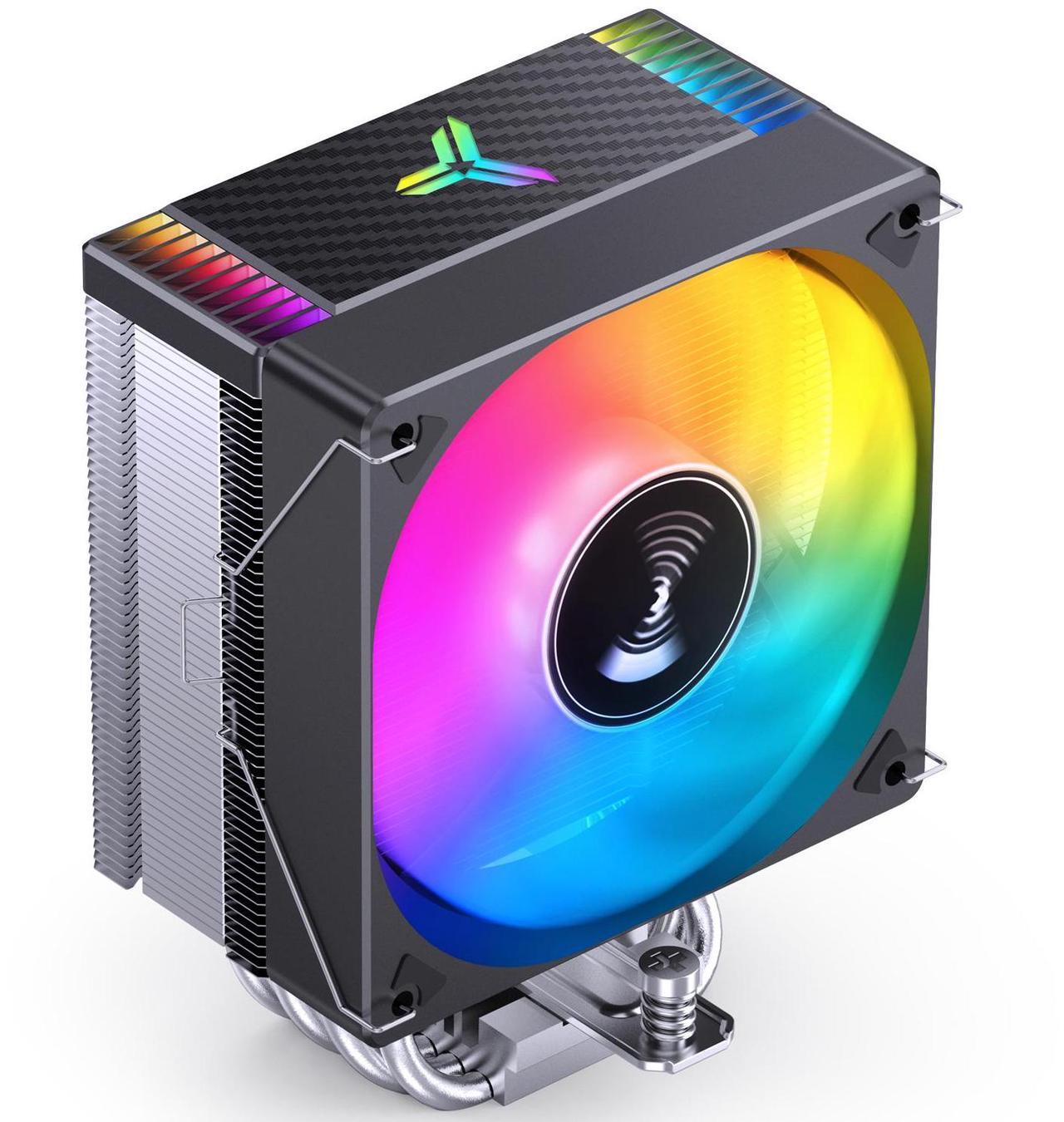

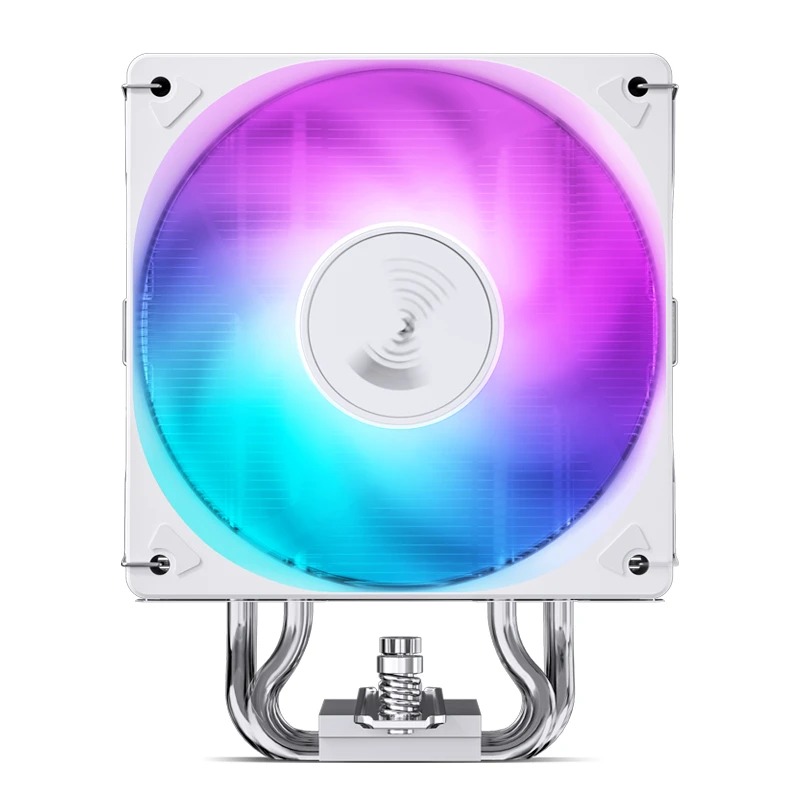

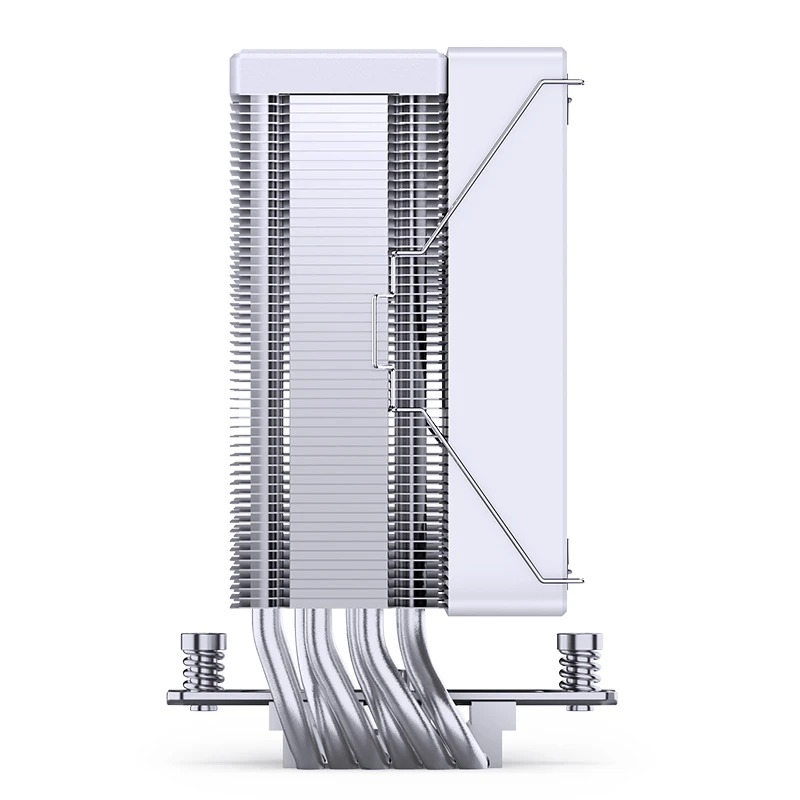

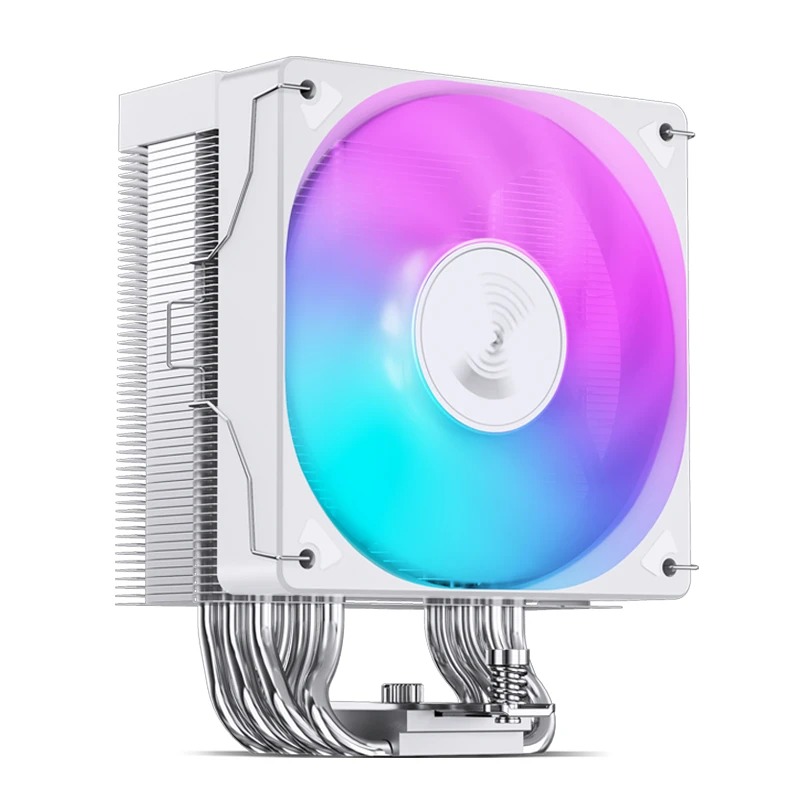

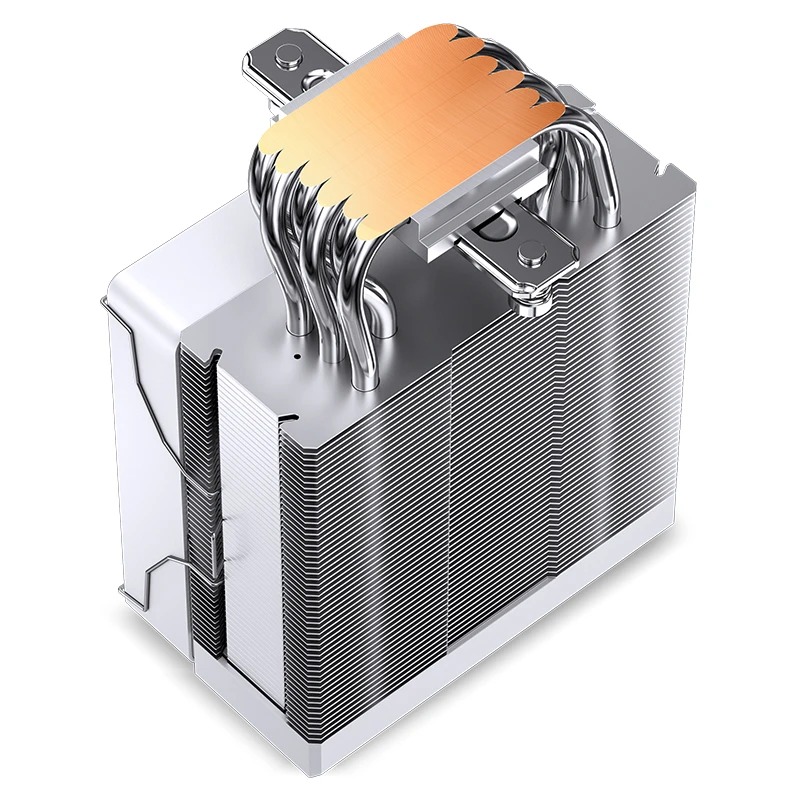

CR-1000MAX ARGB
| Model | CR-1000MAX ARGB |
| Color | Balck , White |
| Product type | Air Cooling Radiator |
| Dimensions | 120 mm(L)*71mm(W)*154mm(H) |

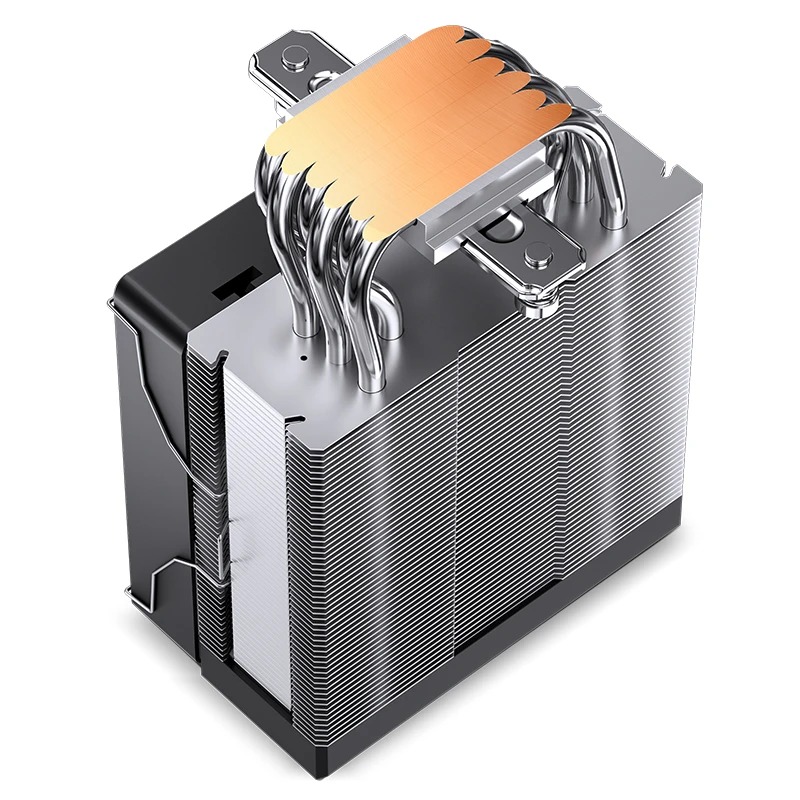

| Heatpipe size | Φ6mm*6PCS |
| D-TDP | 230W |
| Fan Dimensions | 120mm* 120mm* 25mm |
| Fan Speed | 600 -1500RPM(±10%) |
| Fan Air Flow | 28.12-59.48CFM(MAX) |
| Fan Air Pressure | 0.26-1.81mmH2O |
| Fan Noise Level | 22-32dB(A) (MAX) |
| Fan Bearing Type | Hydraulic bearing |
| Fan MTTF | ≥40000h @25℃ |
| Rated Voltage | Fan 12V / LED 5V |
| Platform support | INTEL: LGA 1700/1200/115X/1851 AMD: AM4/AM5 |
